Removing Sensor Module

Information

1. VAS 6622A - Used oil collection and extraction unit  must be placed under the transmission.
2. Remove connector housing for sensor module

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

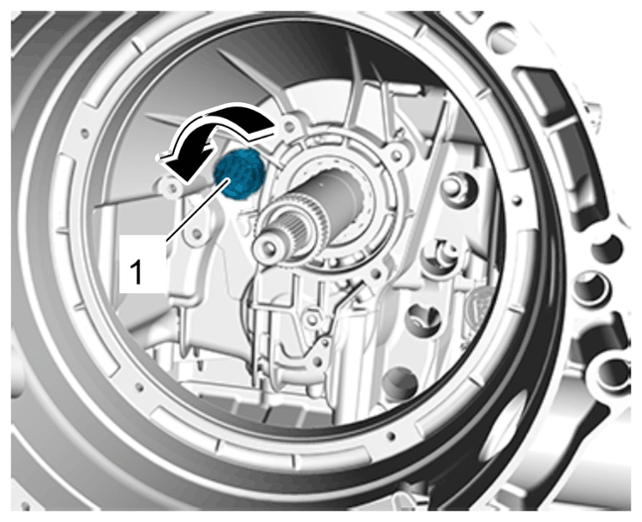

   Connector housing for sensor module

   1. 2.1  Turn connector housing for sensor module -1-  fully to the left using > T40228 - bit  and pull it off.

   Information  : The output shaft and side shaft must not be damaged when removing or fitting the transmission housing cover.

3. Remove transmission housing cover -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

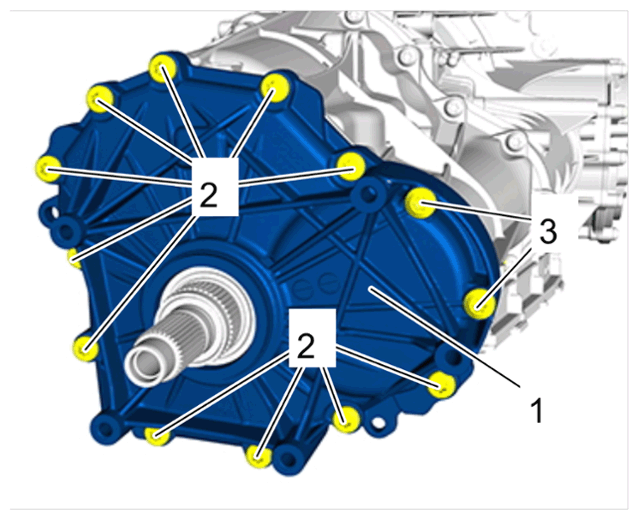

   Transmission housing cover

   1. 3.1  Remove screws -2 and 3-  .
   2. 3.1.1  Replace screws.
   3. 3.2  Pull off transmission housing cover -1-  .
4. Remove sealing ring on transmission housing cover -1-  and replace it.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

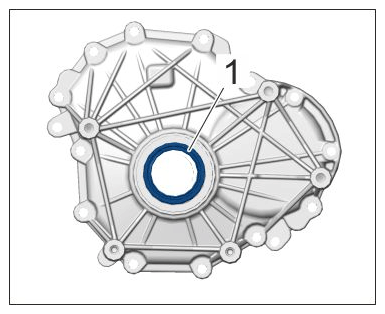

   Sealing ring on transmission housing cover

   Information

   • Sealing faces must be free of oil and grease.
5. Clean sealing faces on transmission housing cover.

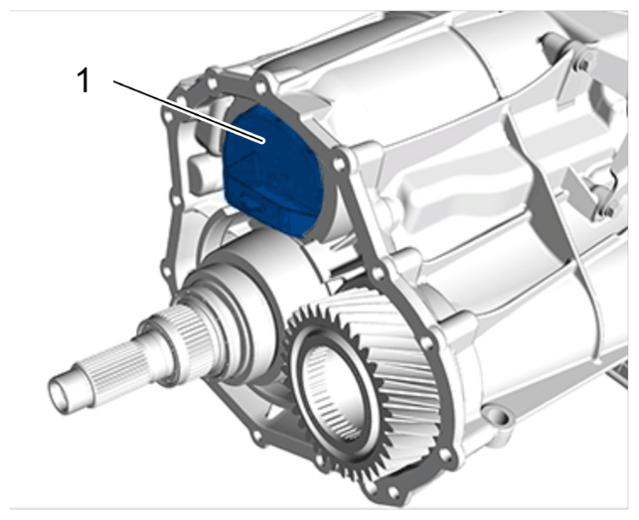

6. Remove oil guide for drive shaft -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Oil guide for drive shaft

   Information

7. Remove side shaft

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

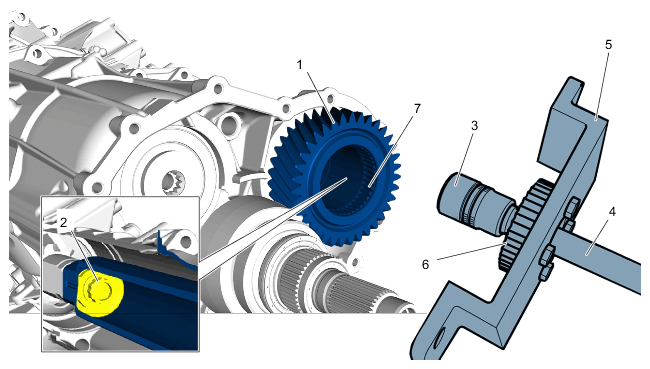

   Side shaft

   1. 7.1  Unscrew side shaft screw -2-  .
      1. 7.1.1  Push on bi-hexagonal socket insert (a/f 21) -3-  with extension -4-  and fit it on side shaft screw -2-  .
      2. 7.1.2  Insert ring gear of > T40217 - counterhold tool-6-  into ring gear of side shaft -7-  .
      3. 7.1.3  > T40217 - Counterhold tool-5-  must be secured to the centre transmission housing.
      4. 7.1.4  Unscrew and replace screw on side shaft -2-  .
   2. 7.2  > T40217 - Counterhold tool-5-  must now be removed.
   3. 7.3  Pull out the side shaft
8. Pull spur gear -1-  and needle-roller bearing -2-  off the output shaft -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

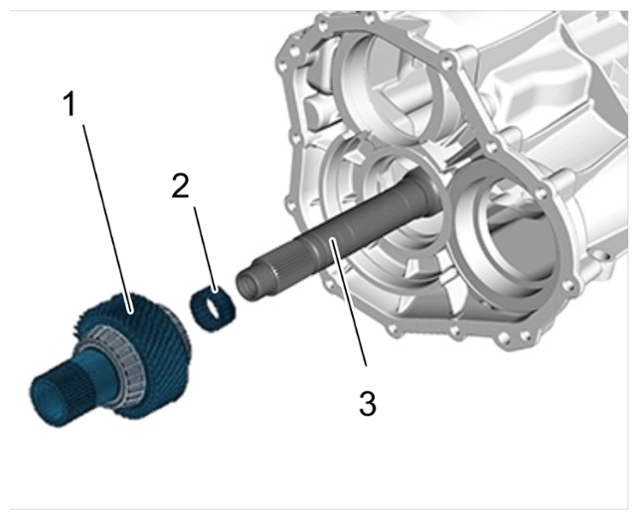

   Spur gear and needle-roller bearing

9. Position double clutch transmission on > VAS 6095A - engine and gearbox bracket  vertically so that the clutch side is facing downwards.

   Information

   • The hooks and staking pins of the lifting tackle must be secured with cotter pins.
   • The centre transmission housing must be lifted off carefully and in a vertical position in order to prevent the centre transmission housing from tilting.
10. Suspend centre transmission housing -1-  on > VAS 6100 - workshop crane -2-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

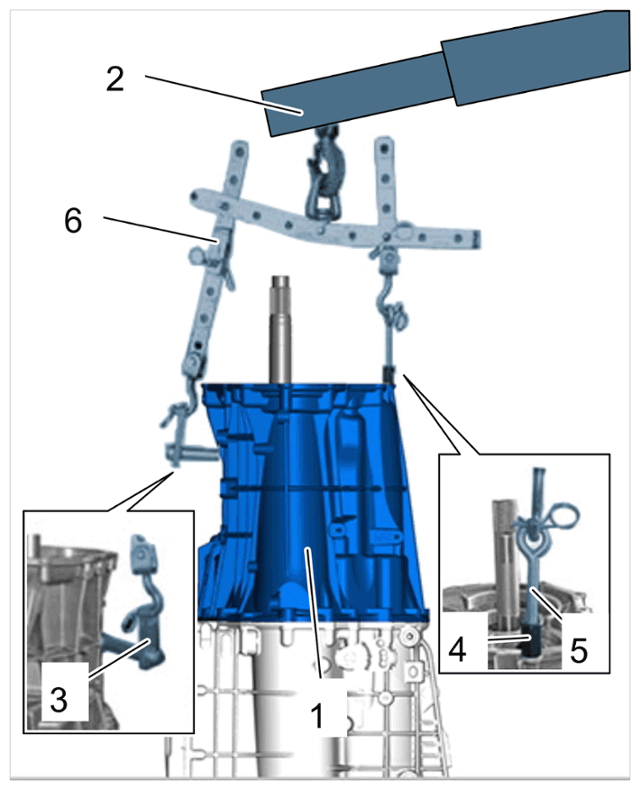

    Transmission housing, centre

    1. 10.1  > T10014 - Retainer-3-  must be secured to the centre transmission housing
    2. 10.2  Secure VW771/40 -4-  from tool set > VW771 - Multi-purpose tool  on the centre transmission housing -1-  .
    3. 10.3  > 3368 - Eye-head bolt-5-  must be secured to VW771/40 -4-  .
    4. 10.4  > T10014 - Retainer-3-  and > 3368 - eye-head bolt-5-  must now be engaged in the > 2024A - lifting tackle-6-  .
    5. 10.5  > 2024A - Lifting tackle-6-  must be attached to the > VAS 6100 - workshop crane-2-  .
11. Remove centre transmission housing -1-  .

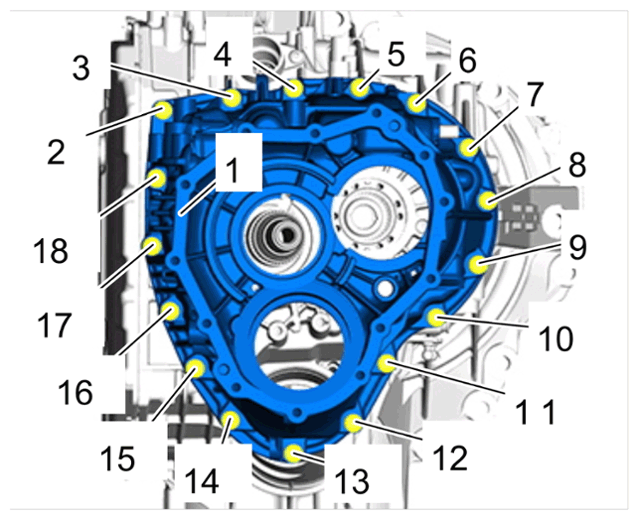

    Fig 1: Centre Transmission Housing Screws Loosening Sequence

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws on centre transmission housing

    1. 11.1  Remove screws -2 to 18-  .
       1. 11.1.1  Replace screws.
    2. 11.2  Lift off centre transmission housing -1-  using > VAS 6100 - workshop crane  and set it down on the workbench with a suitable base.
    3. 11.3  > 2024A - Lifting tackle  must now be removed from the centre transmission housing -1-  .
12. Remove sensor module -1-  with oil collection pan -2-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

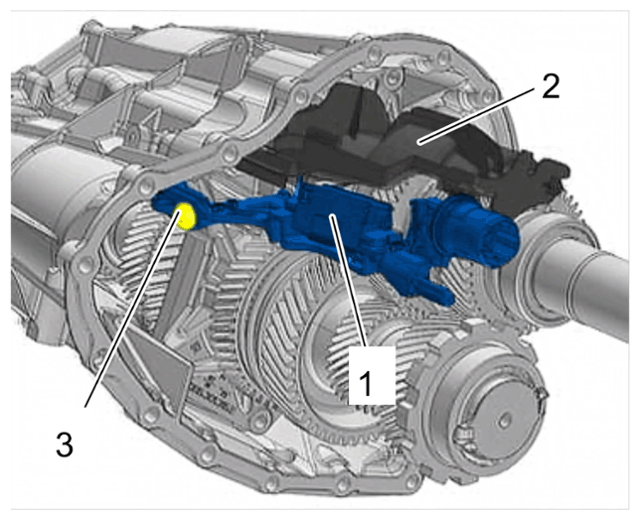

    Sensor module

    1. 12.1  Remove screw -3-  .
    2. 12.2  Remove sensor module -1-  and oil collection pan -2-  .
13. Remove sealing ring for front output shaft.
    • WM, 387055 - REPLACING SEALING RING FOR FRONT OUTPUT SHAFT

    Information

    • Sealing faces must be free of oil and grease.
14. Clean sealing faces on transmission housing flange and centre transmission housing.
