WM, 504255 Replacing Radiator Support: Notes
PART DESCRIPTION
| Part number | Description | Addition | Quantity |
|---|---|---|---|
| > 99919022901 | BLIND RIVET 999.190.229.01 |
TOOL DESCRIPTION
| Tool denomination | Type | Tool number | Image |
|---|---|---|---|

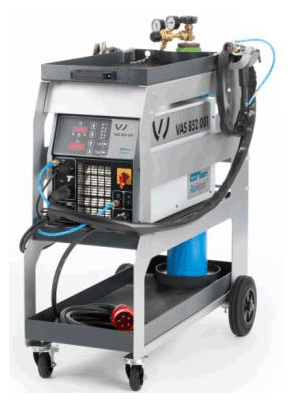

| Body Dent Removal System, Aluminum | Vehicle-specific workshop equipment | > VAS 852 001 | |

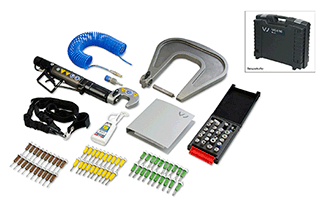

| Compact Booster | Vehicle-specific workshop equipment | > VAS 6790 | |

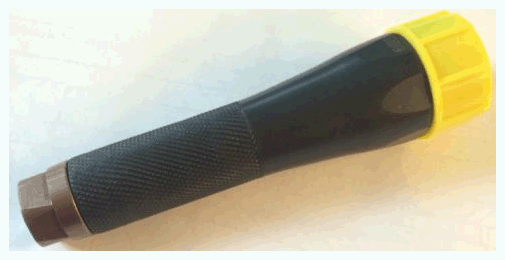

| Extension | Vehicle-specific workshop equipment | > VAS 6792/2 |
TECHNICAL VALUE SPECIFICATION
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Drill bit | Diameter | 6.6 mm | |||
| Adhesive application | Application depth | 3.0 mm |
