WM, 502055 Replacing Floor Front Section: Notes
PART DESCRIPTION
| Part number | Description | Addition | Quantity |
|---|---|---|---|
| > 99919022901 | BLIND RIVET 999.190.229.01 |
TOOL DESCRIPTION
| Tool denomination | Type | Tool number | Image |
|---|---|---|---|

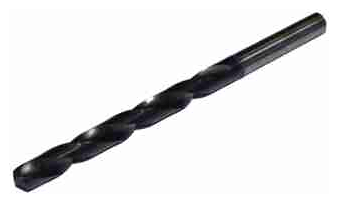

| twist drill | Commercially available tool | > Nr.201 |
TECHNICAL VALUE SPECIFICATION
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Drill bit | Diameter | 6.5 mm | |||
| Drill bit | Diameter | 6.5 mm | |||
| Bead of adhesive | Application depth | 5 mm |
