Removing Control Unit For Electric Steering Column Lock
Information
Voltage peaks
- Risk of damage to electrical load or to the control unit.
- Switch off ignition and load before disconnecting or removing load.
Information
Always comply with the regulations for handling ESD-sensitive components!
- Always wear approved work clothes and shoes when carrying out assembly work.
- Do not remove new part from ESD (electrostatic discharge) protective packaging until shortly before installation and only at the installation position.
- Do not touch electric pins and plug contacts.

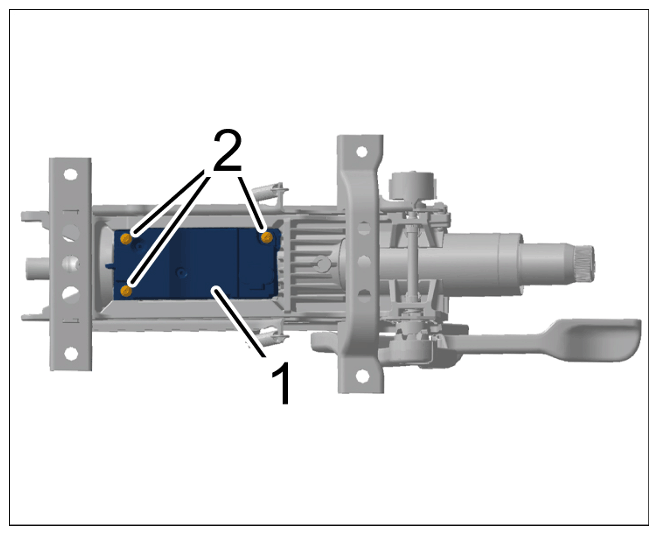

- Unscrew fastening screws -2-
.
Fastening screws
- Remove control unit for electric steering column lock -1- .
Fastening screws
