Installing Optical Contacts On Connector Side

Information

Do not remove dust boot until just before connecting contacts.

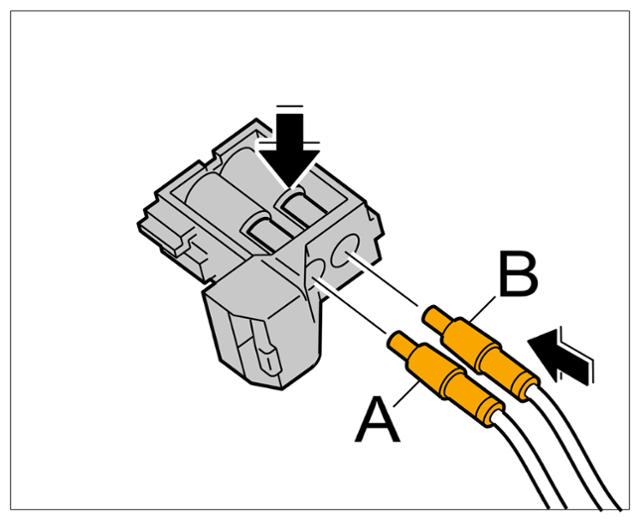

1. Push optical contacts -A and B-  into the connector housing until they engage securely and close the primary lock.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Primary lock

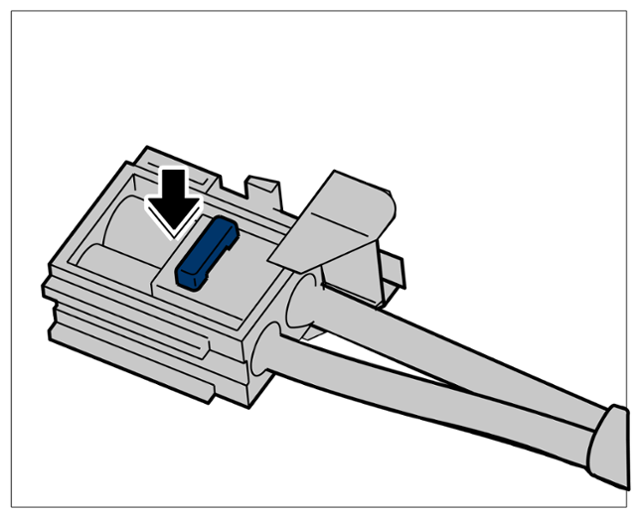

2. Close the secondary lock -arrow-  and check that the optical contacts are fitted securely.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Secondary lock
