Programming Navigation Update On Central Computer

CAUTION: Voltage drop

→ Prior to disconnecting the control unit, switch off ignition and remove ignition key.

→ Ensure that the power supply is not interrupted during programming.

→ Connect a battery charger with a current rating of at least → Nominal value: 40 A to the vehicle battery.

NOTE: Check the contract and validity period of the Map Update service before starting the navigation update.

Once the free Map Update service period has expired, you can extend the Map Update service subject to a charge.

If the vehicle's free Map Update service has expired, it must be extended before starting a navigation update.

Switch on the ignition.
Check contract period of Map Update service.
Read out the contract period of the Map Update service on the central computer by selecting [Home] - [APPS] - [Set] - [Options] - [Services/Information] - [Navi].
Press [Return] to return to the main menu.
Press [Home] on the central computer.
Select the Set menu on the control panel.

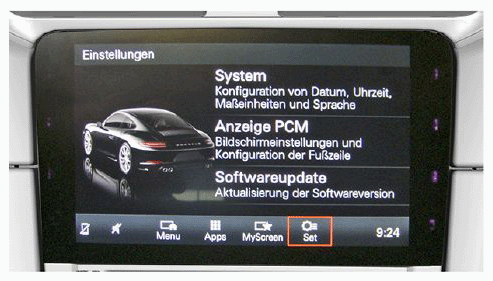

Select the Software Update menu on the control panel.

Software Update

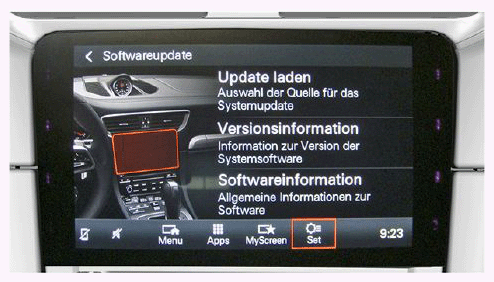

Select the Load update menu on the control panel.

Load update
Insert SD card into the left slot (SD 1) and confirm this on the control panel.

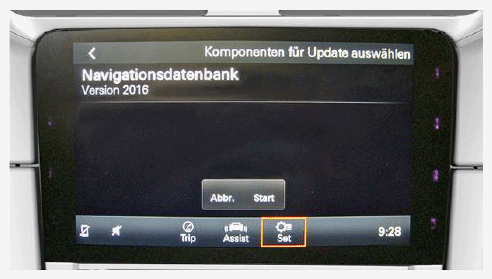

Navigation Database must now be selected on the control panel.

Navigation Database
Select Start to start the update.
The update can take a long time.

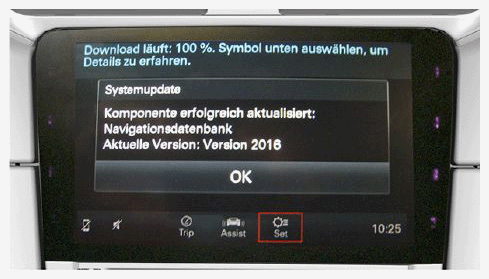

When the navigation update is complete, confirm with OK .

Confirm
Press Return to return to the main menu.
Remove SD card from the SD card slot.
Perform function test on navigation system.
Switch off the ignition.
