Approval And Support Management Program (ASM) (GROUP 0, NO. 1602)

APPROVAL AND SUPPORT MANAGEMENT PROGRAM (ASM)

SERVICE CAMPAIGN BULLETIN

REVISION

This ATI bulletin replaces bulletin Group 0, #1602, dated September 25, 2018.

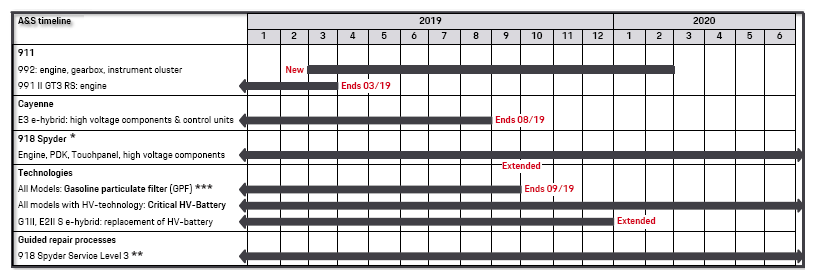

• A&S Timeline chart on page 1 was revised.
• A&S Overview chart on page 2 was revised.

INFORMATION

The Approval and Support Management system was created to offer assistance to the dealer organization with new and complex technical issues by utilizing the Support Specialists within Porsche R&D. As a result, this process has reduced vehicle downtime and repeat repairs substantially.

Footnotes:

* Service level 2: Demounting/mounting of powertrain components; engine and gearbox repairs; hybrid components; high voltage battery; demounting/mounting CFRP structure.

** Service level 3: Liquid metal paintwork; film-covered body (Decor wraps, complete film cover); CFRP structure repair (Monocoque, power unit rack), HV battery repair, PDK transmission and combustion engine repair.

*** GPF The GPF is valid for emissions level EU28 and China only.

INFORMATION

PROCEDURE FOR APPROVAL AND SUPPORT MANAGEMENT (ASM)

In the event that a vehicle comes into the workshop with a verified and undiagnosable complaint pertaining to one of the current ASM topics, please complete the following:

1. Create a PQIS job with uploaded VAL.
2. Create a TLAR (after utilizing all dealer resources such as PIWIS workshop documents and bulletins).

On the TLAR, please provide the original customer complaint and details of your test results. It is important that we have in depth knowledge of the diagnosis that has been performed.

Footnotes:

* GPF The GPF is valid for emissions level EU28 and China only.
