Removing Occupant Detection Control Unit

G11981616

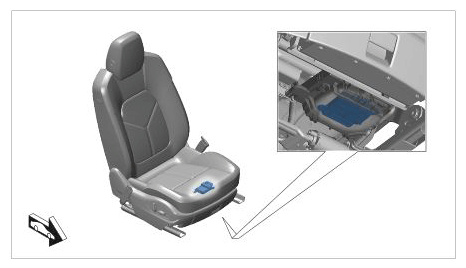

Installation position of occupant detection control unit

  1. Release electric plug connection -1-  on the occupant detection control unit -a- and disconnect it.
    G11981617

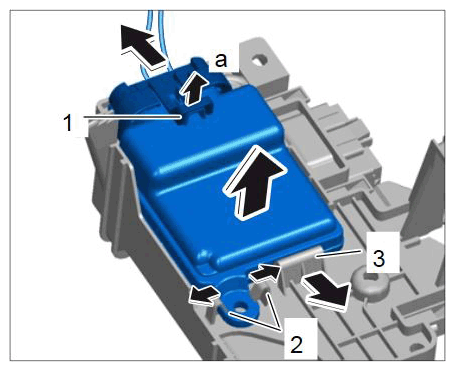

    Removing occupant detection control unit

  2. Carefully unclip occupant detection control unit -2, 3-  and remove control unit.
  3. Remove padding for right seat. → 741055 REPLACING PADDING FOR FRONT SEAT - SECTION ON "REMOVING"
  4. Remove pressure sensor mat. → 695619 REMOVING AND INSTALLING SEAT OCCUPANCY DETECTION SYSTEM - SECTION ON "REMOVING"
