Installing Occupant Detection Control Unit
If the occupant detection control unit (installed in the country equipment USA/Canada/Mexico) must be replaced, the repair kit compromising padding, occupant detection control unit and pressure sensor mat must always be replaced as a complete unit.

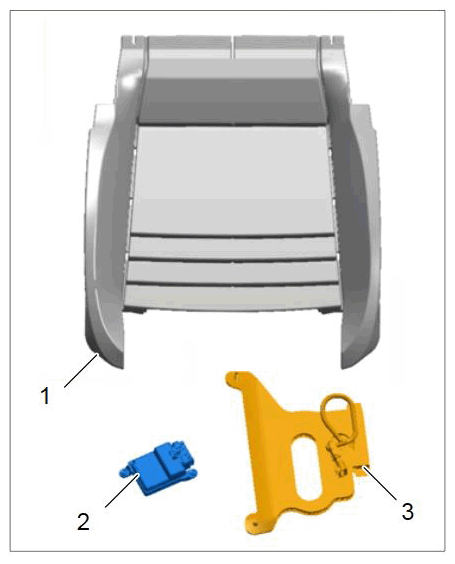

The spare parts are grouped in a repair kit (comprising padding -1-, occupant detection control unit -2- and pressure sensor mat -3-), which must always be replaced as a complete unit.
1 - Padding
2 - Occupant detection control unit
3 - Pressure sensor mat
Occupant detection repair kit contents
A mixed installation , e.g. "old" pressure sensor mat and "new" control unit, is not permitted.
The padding, pressure sensor mat and occupant detection control unit are calibrated together by the manufacturer and must therefore only be replaced as a complete unit.
The occupant detection control unit must not be coded.
- Check connector housing seal before fitting it to ensure that it is installed at the correct position.NOTE:
The connector of the occupant detection control unit must be inserted straight as otherwise the seal will be damaged. The seating of the seal must then be checked.
- Connect electric plug connection to the occupant detection control unit until it engages securely.

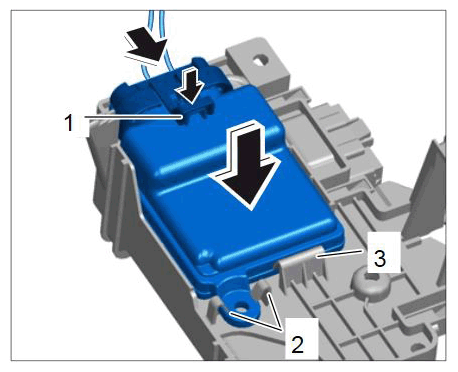

Installing occupant detection control unit
- Position occupant detection control unit on the holder and clip it in. Clips -2, 3- must engage securely.
