Replacing DME Control Unit: Notes

  1. Unscrew fastening screws -1-  .
    G14803174Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Replacing DME control unit (shown as an example)

  2. Screw in fastening screws -1-  . > Tightening torque 9 Nm (6.5 ftlb.)


  1. Unscrew four fastening screws -1-  on the bracket.

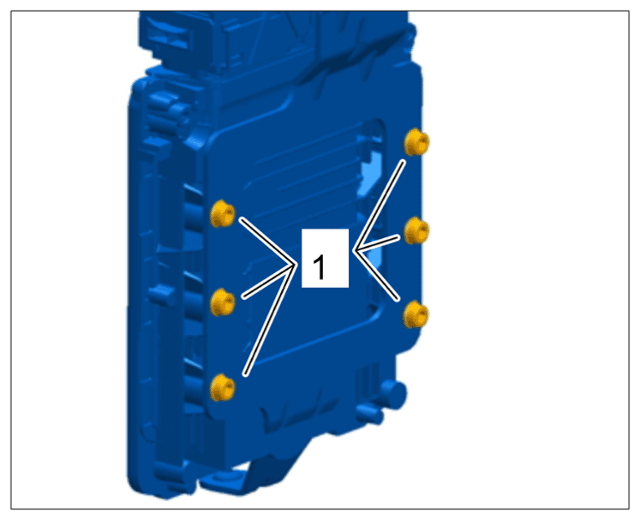

    G14803193Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Replacing DME control unit (shown as an example)

  2. Screw in four fastening screws -1-  on the bracket. > Tightening torque 9 Nm (6.5 ftlb.)
