Removing Glow Control Unit

Information

• Refer to the respective circuit diagram for the assignment of the relay carriers.
• The glow control unit is located in the E-box in the plenum panel, on left side in direction of travel.

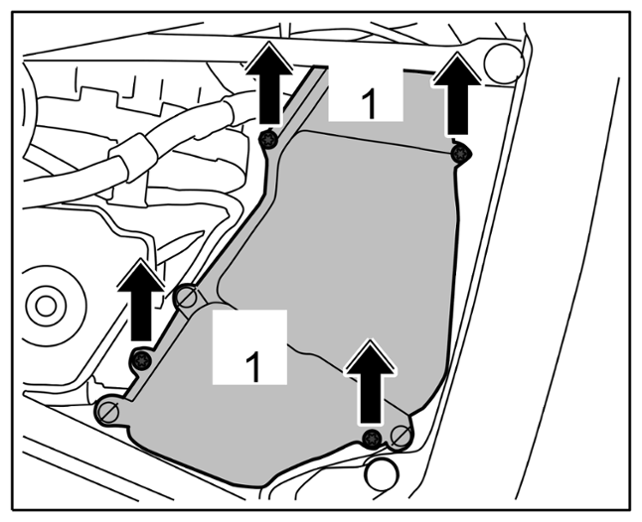

1. Unscrew fastening screws -arrows 1-  and remove the cover.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing cover

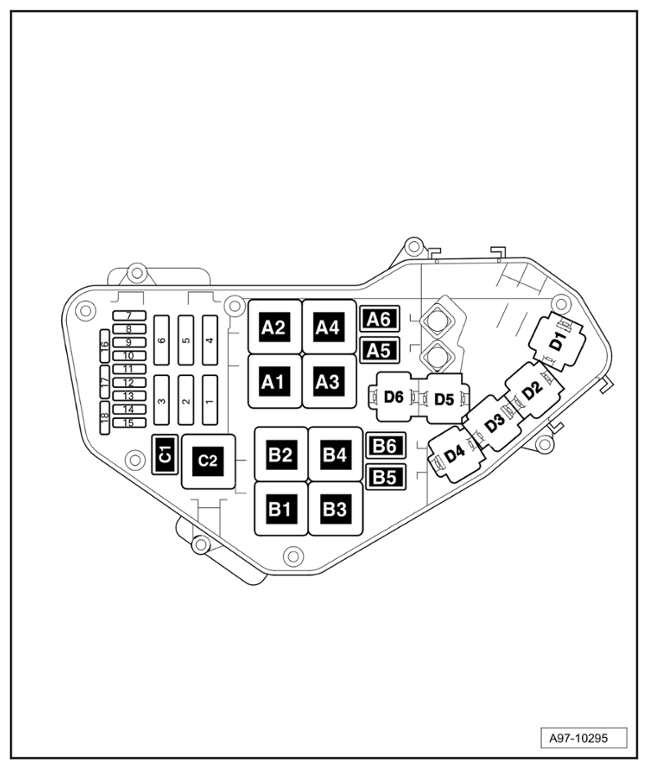

2. Pull the glow control unit -A1-  up out of the relay carrier.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Slot for glow control unit

A1  Glow control unit
