Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Head airbag to door M6 x 25 Tightening torque 10 Nm (7.5 ftlb.)
G14954766Courtesy of PORSCHE CARS NORTH AMERICA, INC.

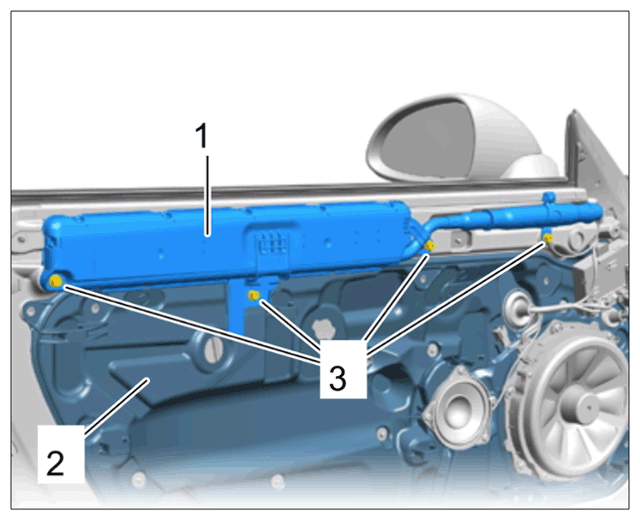

Mounting for head airbag
