Removing And Installing DME Control Unit

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit

Information

Always comply with the regulations for handling ESD-sensitive components!

• Always wear approved work clothes and shoes when carrying out assembly work.
• Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation.
• Do not touch electric pins and plug contacts.

Information

The DME control unit can be secured with shear-off nuts, depending on the country. Loosen shear-off nuts using > 9259 - socket-wrench insert  .

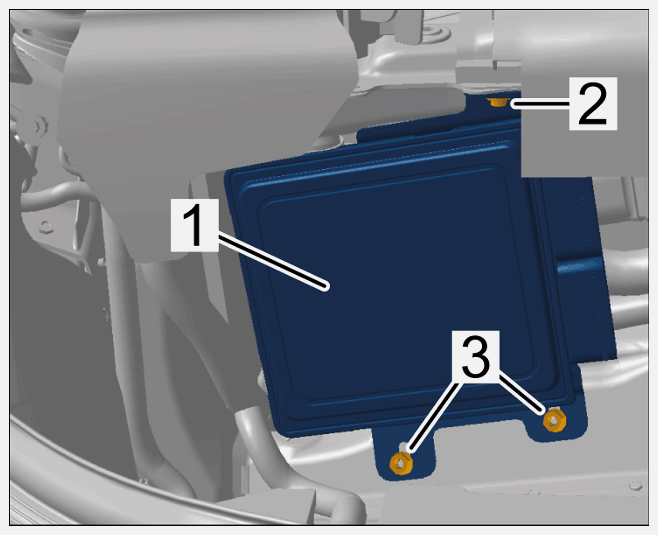

1. Unscrew and remove screw -2  -.
2. Unscrew nuts -3  - and remove DME control unit -1  -.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

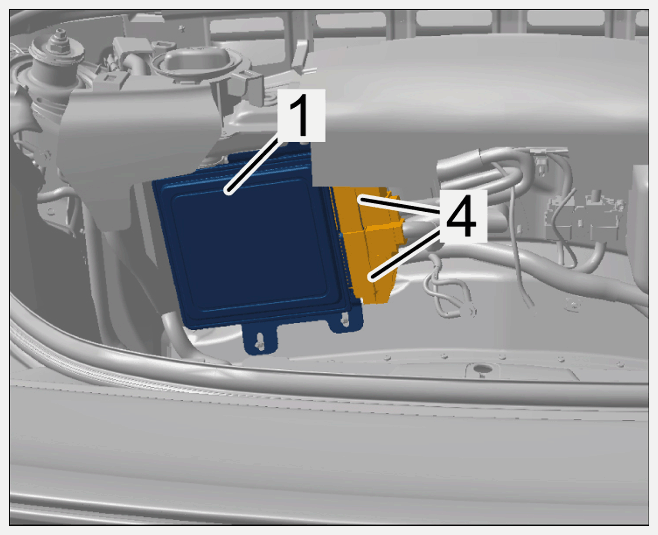

3. Disconnect electric plug connections -4  - and remove DME control unit -1  -.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

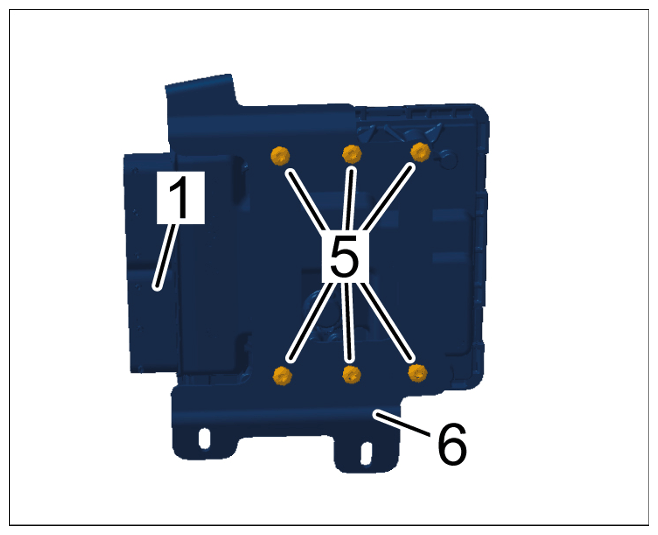

4. Unscrew screws -5  - and remove DME control unit -1  - from the holder -6  -.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

5. Installation is performed in reverse order.
