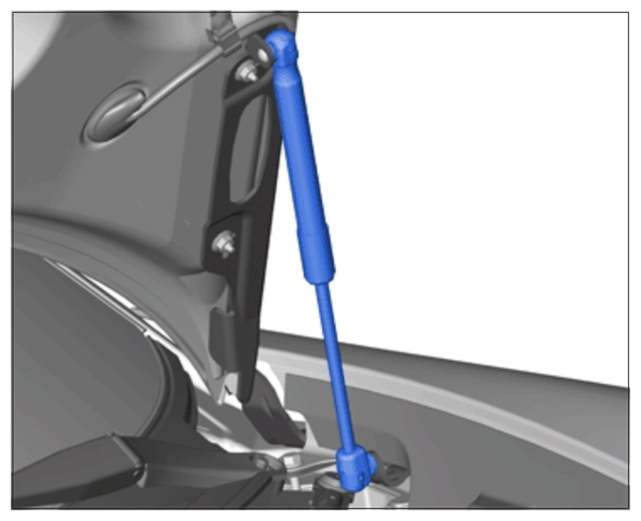

Removing And Installing Front Pneumatic Spring On The Lid

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

CAUTION: Incorrect handling of gas-filled shock absorbers

• Gas-filled shock absorbers can burst
• Risk of eye injuries
• Risk of bruising

→ Gas-filled shock absorbers must be in idle state before removal.
→ Open the lid.
→ Secure the lid to prevent it from closing accidentally following removal of the gas-filled shock absorbers.
→ Do not use force to open the gas-filled shock absorbers because of their high internal pressure.

1. A second person should hold the front lid to prevent it from closing accidentally.

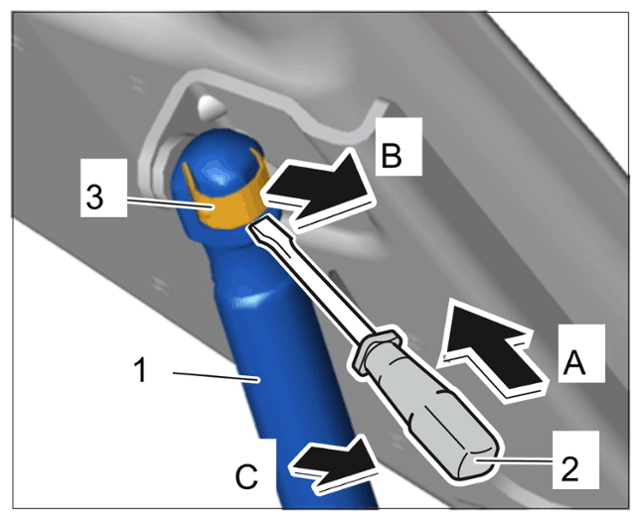

2. Insert a screwdriver -2-  between the head of the pneumatic spring and the safety clip -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

3. Loosen safety clip -3-  by levering the screwdriver -2-  towards the pneumatic spring -1-  . The safety clip -3-  remains at the head of the pneumatic spring.
4. Pull pneumatic spring -1-  off the ball joint.
5. Remove pneumatic spring -1-  .
6. Installation is performed in reverse order.
