Removing And Installing Multimedia Interface

Information

The multimedia interface connections will vary, depending on equipment.

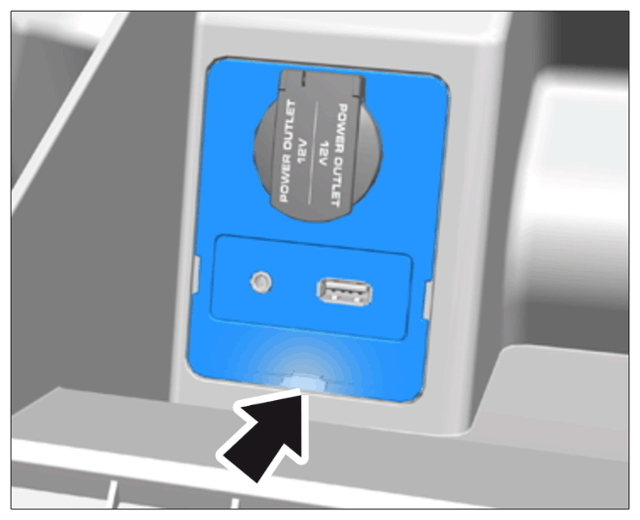

1. Unclip multimedia interface using a suitable tool -arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

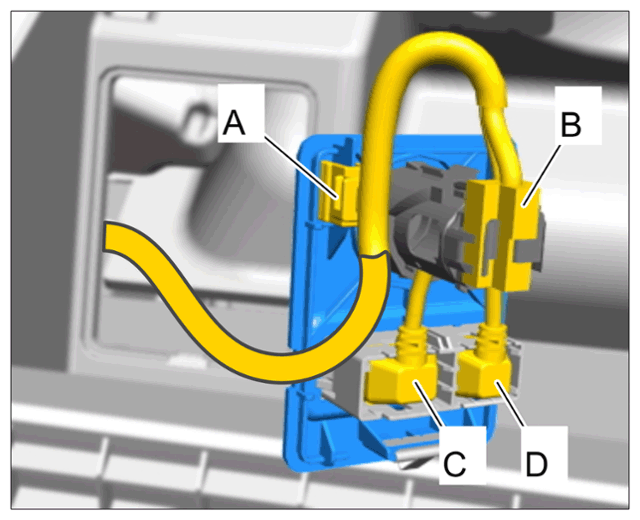

2. Disconnect electric plug connections -B, C and D-  .
3. Unclip line bracket -A-  and remove multimedia interface.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

4. Installation is performed in reverse order.
