Installing Front Door Control Unit

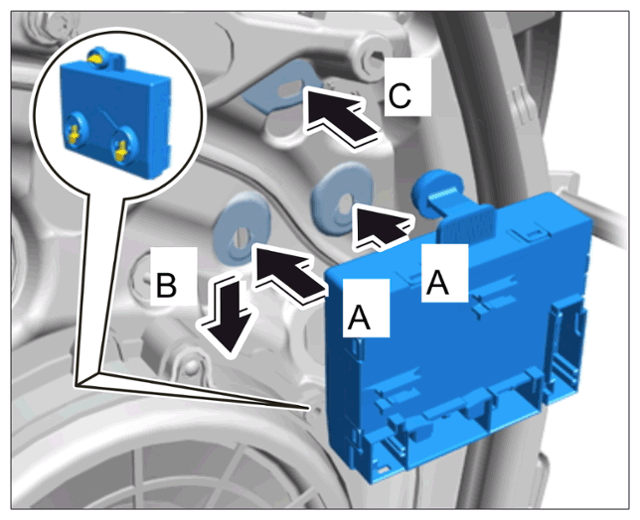

  1. Fit door control unit -A-  , slide it down -B-  and clip it in -C-  .
    G14953580Courtesy of PORSCHE CARS NORTH AMERICA, INC.

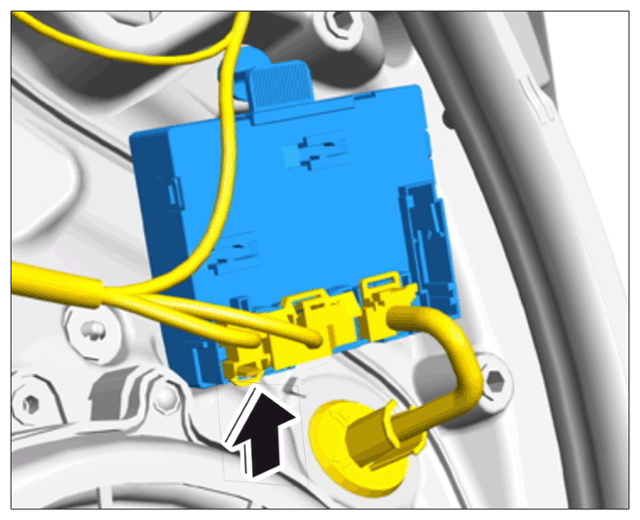

  2. Plug in connector until it engages securely -arrow-  .
    G14953581Courtesy of PORSCHE CARS NORTH AMERICA, INC.

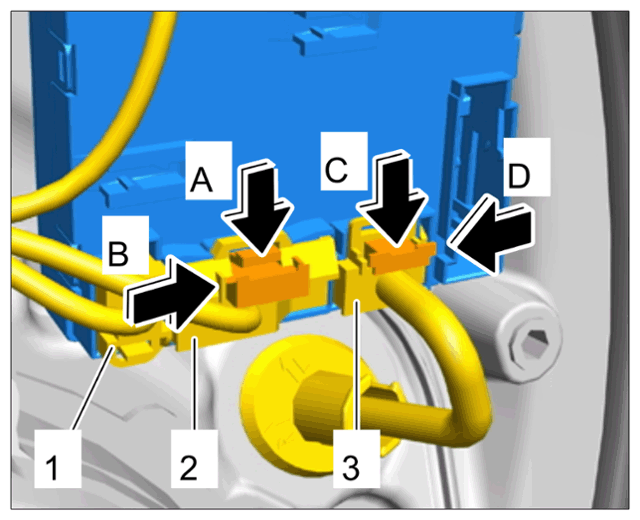

  3. Plug in connector -2-  until it engages securely -A-  and lock unlocking protection -B-  .
  4. Plug in connector -3-  until it engages securely -C-  and lock unlocking protection -D-  .
G14953582Courtesy of PORSCHE CARS NORTH AMERICA, INC.
