Mode 6 - PORSCHE
>>
Mode 6 Data 2014-15 V6
Mode 6 Data 2014-15 V6

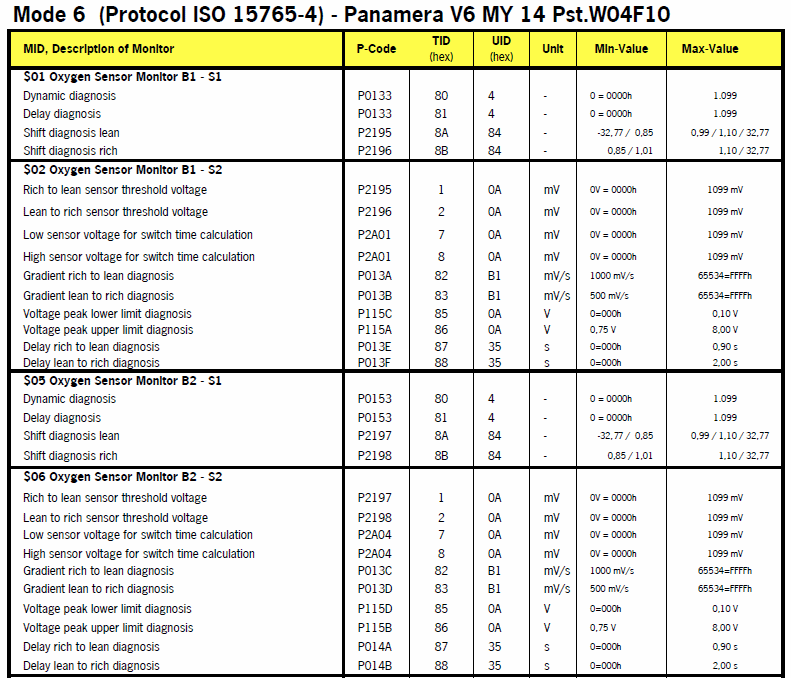

Fig 1: Panamera (970) V6 - 2014-15 (1 Of 3)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

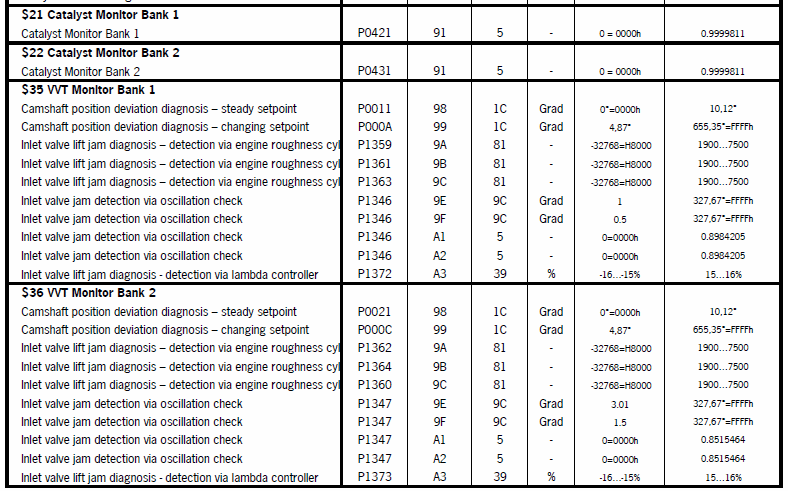

Fig 2: Panamera (970) V6 - 2014-15 (2 Of 3)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

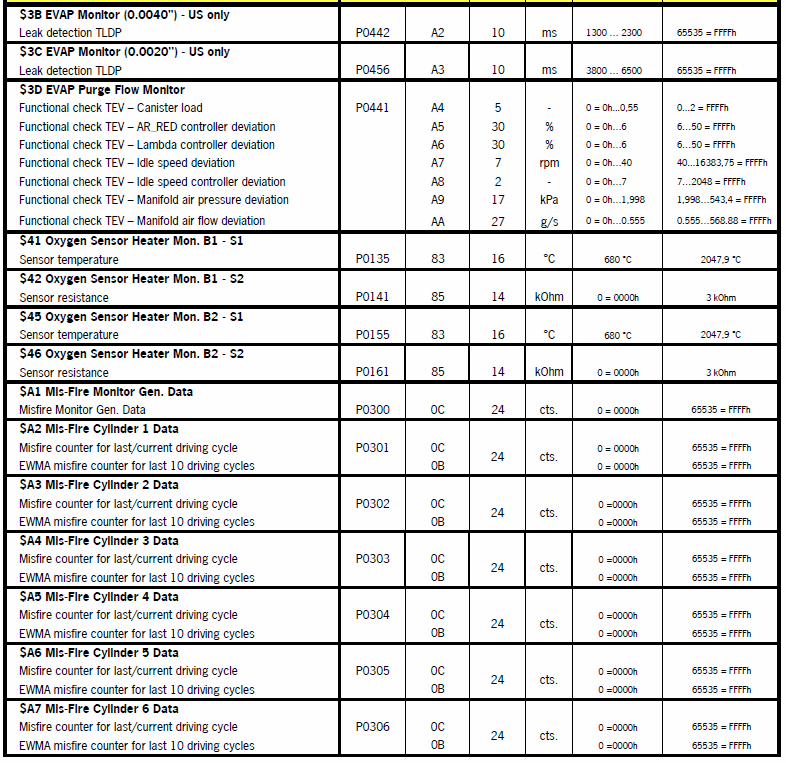

Fig 3: Panamera (970) V6 - 2014-15 (3 Of 3)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
