Replacing front speed sensor: Notes

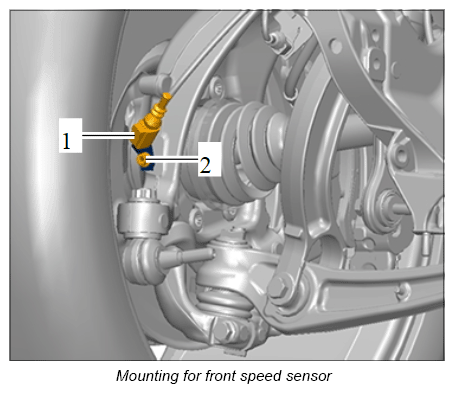

  1. Release and disconnect electric plug connection -1-  on the speed sensor.
  2. Unscrew fastening screw -2-  .
    G12834732Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Pull the speed sensor out of the wheel bearing housing.
