Disassembling steering wheel

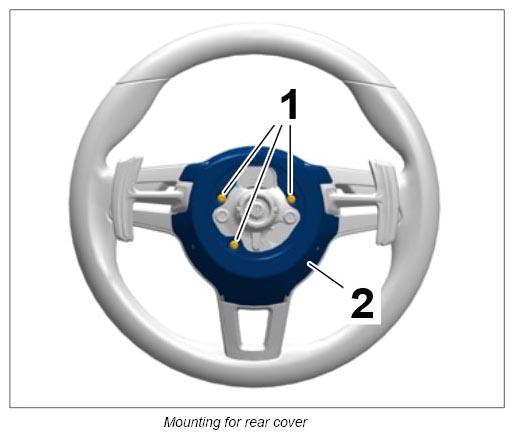

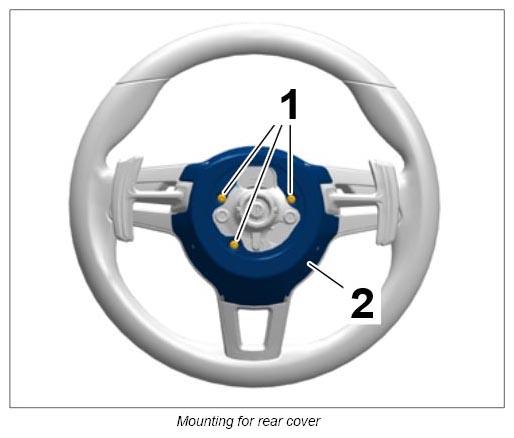

Unscrew fastening screws -1- on rear cover -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

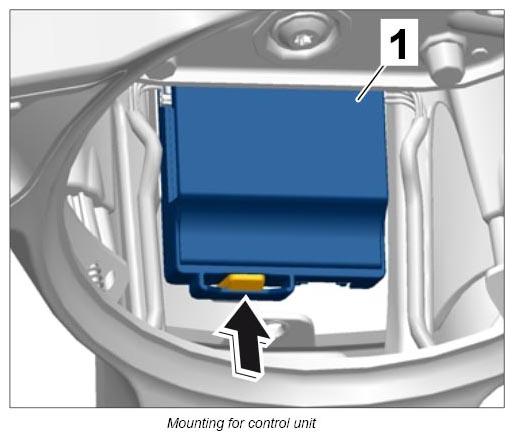

Release control unit -1- at position and pull it forward slightly.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove rear cover -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

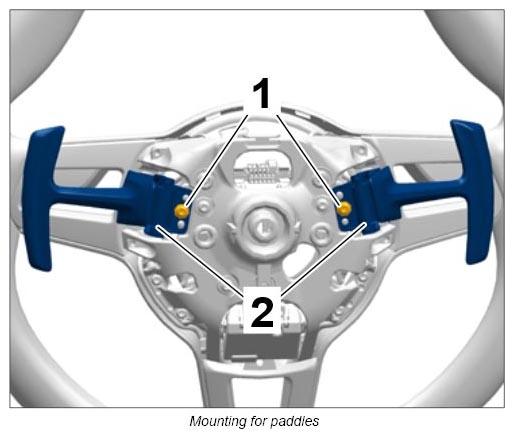

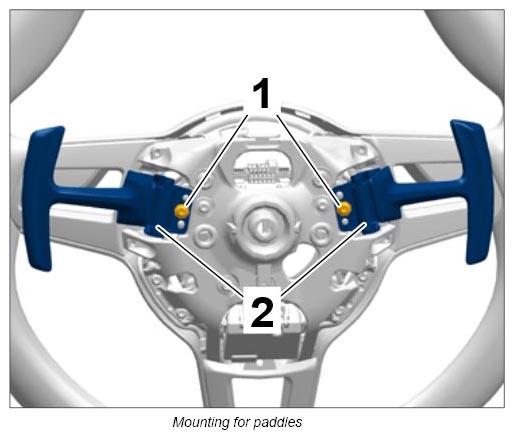

Unscrew fastening screws -1- for the paddles -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

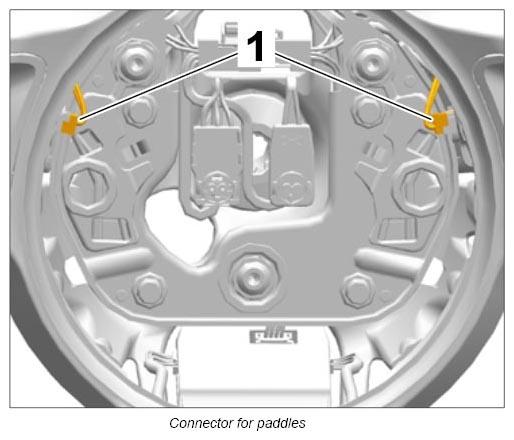

Release and disconnect electric plug connection -1- for the paddles.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Lift paddles -2- up and off.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

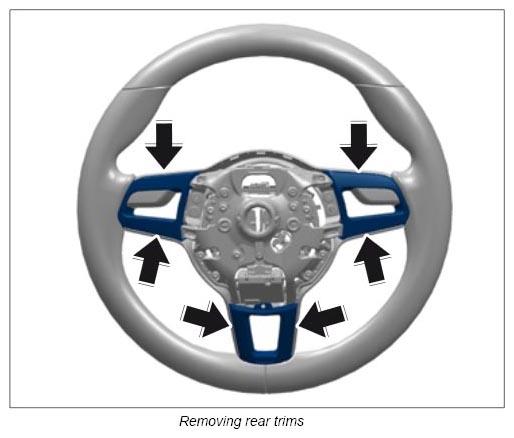

Unclip rear trims at positions using a suitable thin tool (e.g. feeler gauge).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

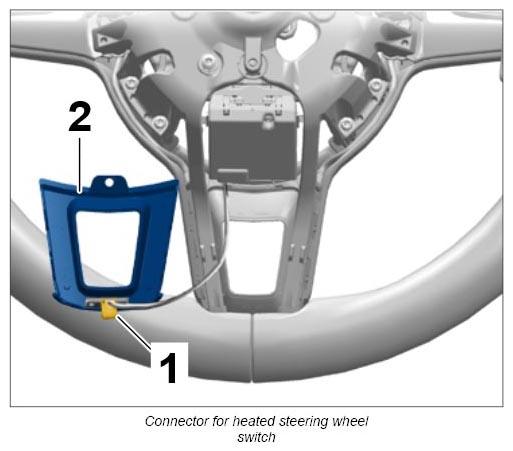

Only for heated steering wheel: Release electric plug connection -1- from the rear trim at the 6 o'clock position -2- and disconnect it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

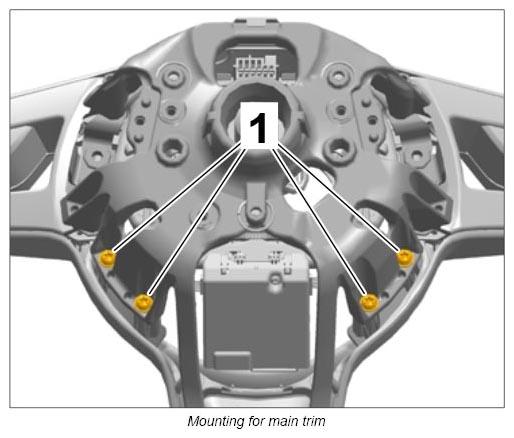

Unscrew fastening screws -1- on the main trim.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

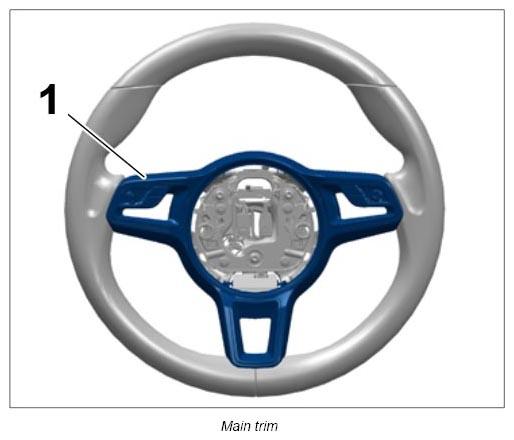

Lift main trim -1- straight up.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release and disconnect electric plug connections -1- and remove main trim -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

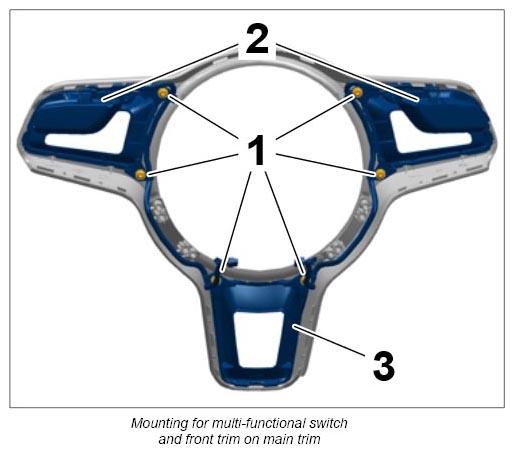

Unscrew fastening screws -1- for the multi-functional switch -2- and front trim -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove multi-functional switch -2- with cables and front trim -3- .

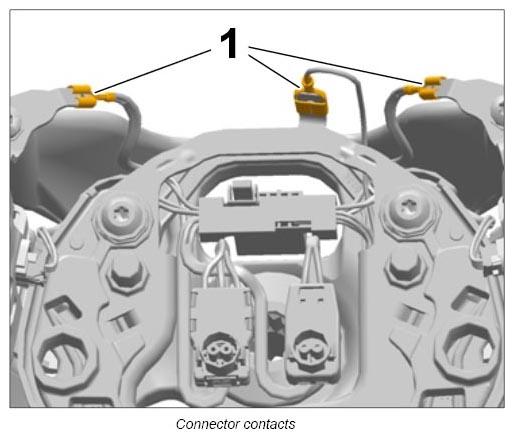

Disconnect connector -1- from connector lugs.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

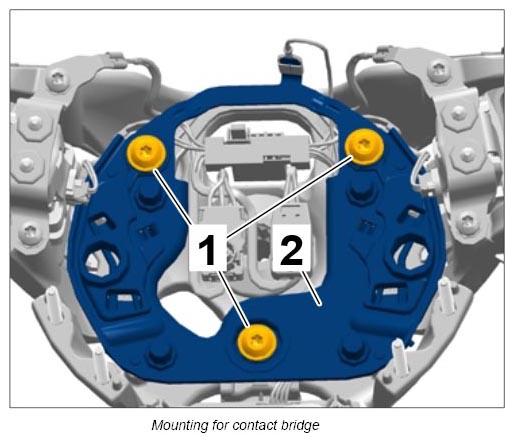

Unscrew fastening screws -1- on the contact bridge -2- and remove contact bridge.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

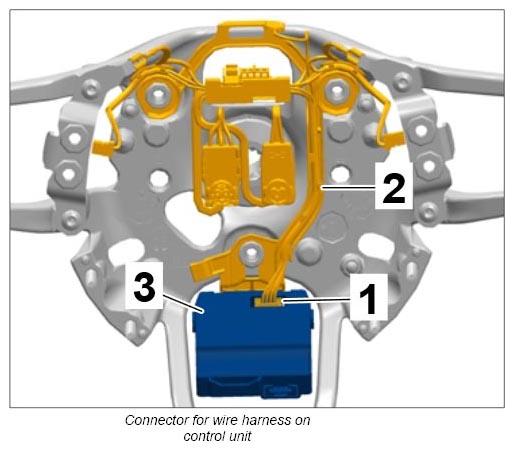

Release electric plug connection -1- for wire harness -2- from the control unit -3- and disconnect it. On vehicles with heated steering wheel, the electric plug connection for the heated steering wheel must also be loosened at the control unit.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

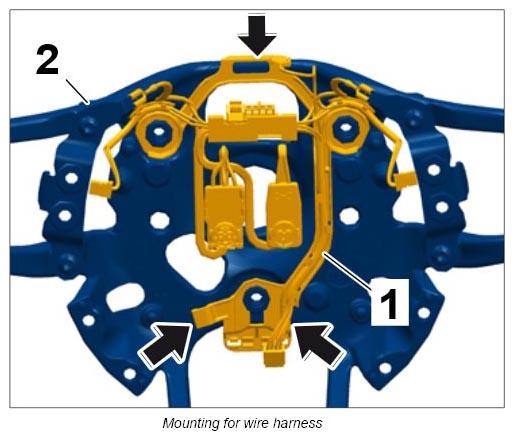

Release wire harness -1- at positions from the steering wheel skeleton -2- and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
