Removing Bar Ignition Modules

  1. Pull out bar ignition modules. For securely seated bar ignition modules, use the special tool Puller T10095 A -A-  to do this.

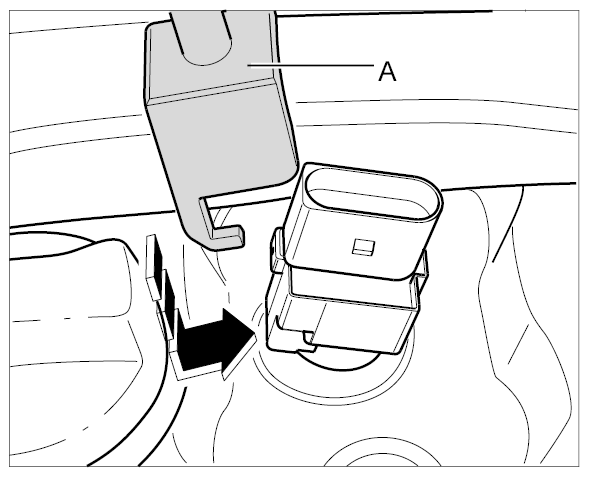

    Fig 1: Removing Bar Ignition Modules
    G09934212Courtesy of PORSCHE CARS NORTH AMERICA, INC.
