Removing Occupant Detection Control Unit

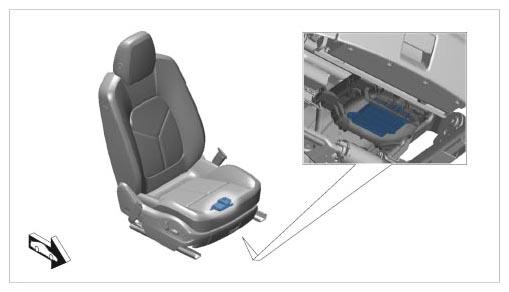

Fig 1: Identifying Occupant Detection Control Unit Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Unscrew the two fastening screws -2-  and the occupant detection control unit -1-  and remove from the side.
   Fig 2: Removing Occupant Detection Control Unit

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Release and unplug the electrical plug connection -2-  on the occupant detection control unit -1-  .
3. Remove the occupant detection control unit -1-  .

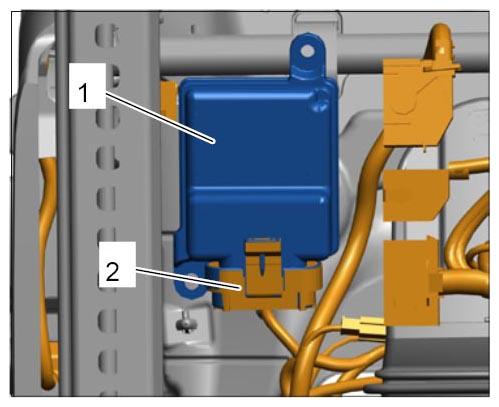

Fig 3: Releasing And Unplugging Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
