Installing Occupant Detection Control Unit

Information

If the occupant detection control unit (installed in the country equipment USA/Canada/Mexico) must be replaced, the repair kit compromising padding, occupant detection control unit and pressure sensor mat must  always be replaced as a complete unit  .

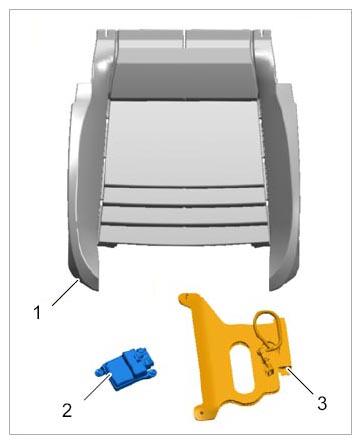

The spare parts are grouped in a repair kit (comprising padding -1-, occupant detection control unit -2- and pressure sensor mat -3-), which must always be replaced as a complete unit  .

1. Padding
2. Occupant detection control unit
3. Pressure sensor mat

Fig 1: Identifying Occupant Detection Repair Kit Contents

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

A mixed installation  , e.g. "old" pressure sensor mat and "new" control unit, is not permitted  .

The padding, pressure sensor mat and occupant detection control unit are calibrated together by the manufacturer and must therefore only be replaced as a complete unit.

The occupant detection control unit must not be coded.

Information

The connector of the occupant detection control unit must be inserted straight as otherwise the seal will be damaged.

1. Check that the installation position of the connector housing seal is correct before inserting it.

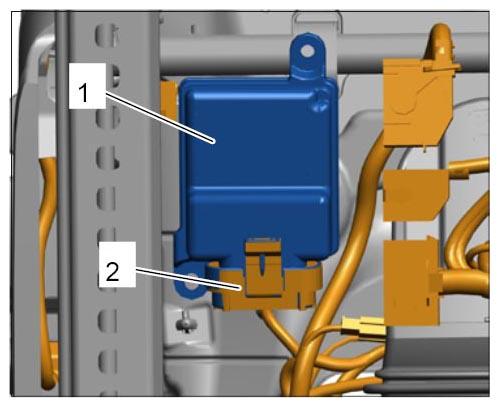

2. Push electrical plug connection -2-  on to the occupant detection control unit -1-  until it engages securely.
   Fig 2: Connecting Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

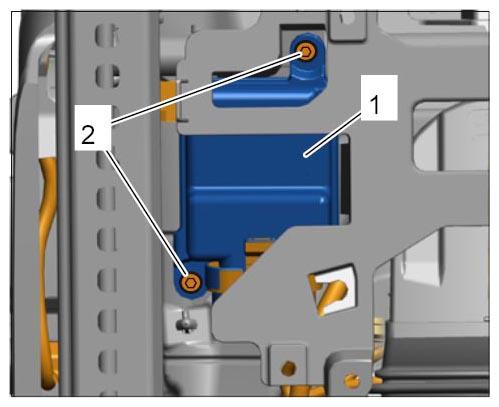

3. Position the occupant detection control unit -1-  on the holder and tighten the fastening screws -2-  .
   Fig 3: Installing Occupant Detection Control Unit

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
