Installing Front Pressure Sensor

→ Always use new fastening screws and nuts following removal.

→ Observe specified tightening torques.

→ Carry out a visual inspection of all re-used parts.

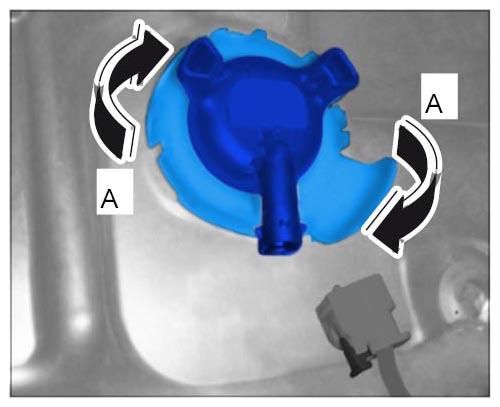

1. Fit the pressure sensor and engage the locking mechanism for the pressure sensor by turning it clockwise -A-  .
   Fig 1: Installing Pressure Sensor

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

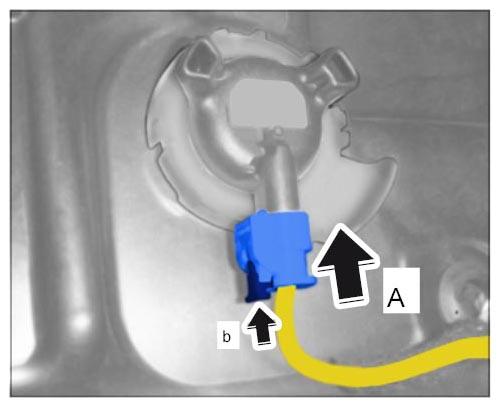

2. Plug in electric plug connection -A-  and press in the locking mechanism -b-  .
   Fig 2: Plugging Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
