Removing PCM Display And Operator Control Unit

Information

Ignition switched off and ignition key removed before disconnecting or connecting load  .

Information

Protect center console against scratching by using a suitable cover.

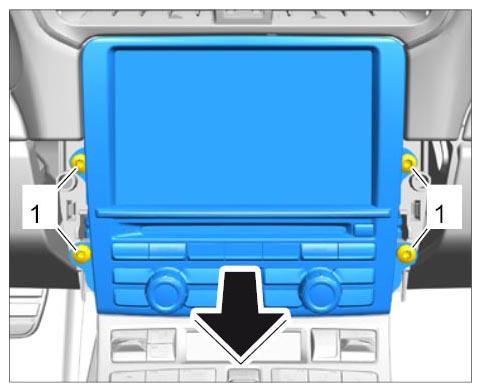

1. Unscrew screws -1-  and pull the display and operator control unit forward -arrow-  to remove it.
   Fig 1: Pulling PCM Display And Operator Control Unit

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   The number of electric plug connections can vary, depending on the equipment variant.

2. Release and disconnect antenna connectors -arrows-  .
   Fig 2: Disconnecting Antenna Connectors

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

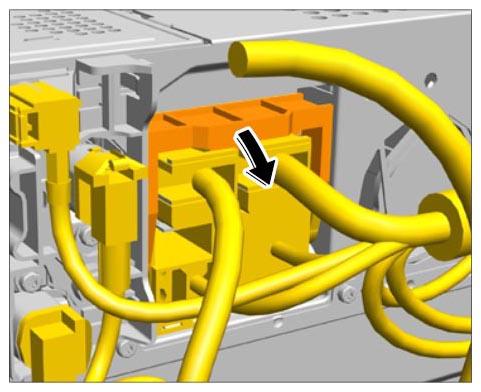

3. Swivel out the securing latch -arrow-  and disconnect combination plug.
   Fig 3: Unlocking Combination Plug

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

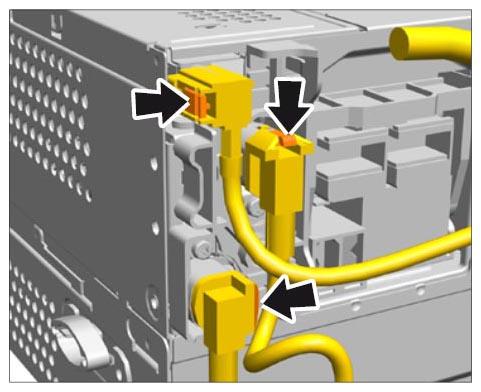

4. Release and disconnect antenna connectors -arrows-  .
   Fig 4: Disconnecting Antenna Connectors

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Remove PCM display and operator control unit.
