Installing PCM Display And Operator Control Unit

Information

The number of electric plug connections can vary, depending on the equipment variant.

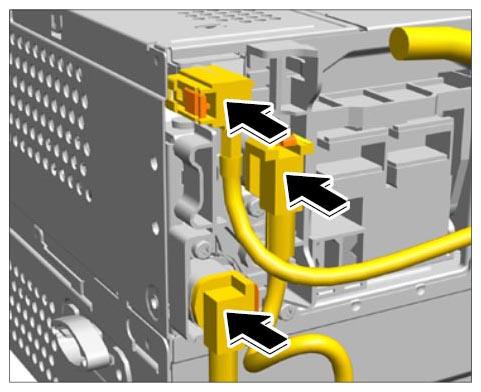

1. Plug antenna connectors into the respective coded bushings -arrows-  until the connectors engage securely.
   Fig 1: Plugging Antenna Connectors

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

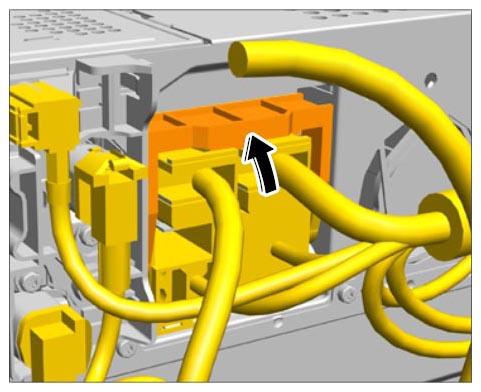

2. Plug in combination plug and press the swivel latch down -arrow-  until it engages securely.
   Fig 2: Plugging Combination Plug

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

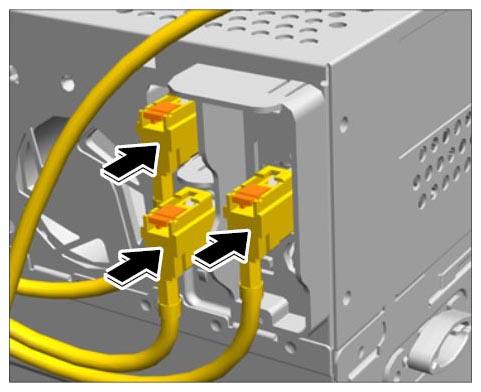

3. Plug antenna connectors into the respective color-coded bushings -arrows-  until the connectors engage securely.
   Fig 3: Plugging Antenna Connectors

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

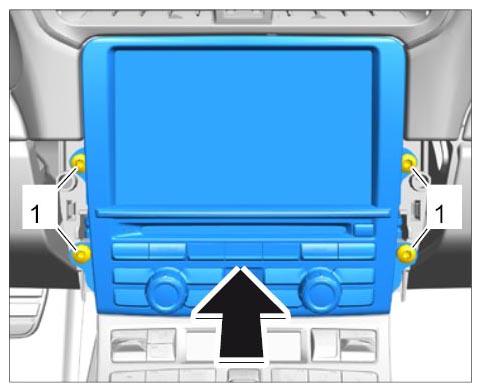

4. Carefully slide the display and operator control unit into the slot -arrow-  , making sure  that no lines are crushed.
   1. 4.1. Screw in fastening screws -1-  and tighten to Tightening torque 5.6 Nm (4 ftlb.)  until secure.
      Fig 4: Inserting PCM Display And Operator Control Unit

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
