Installing Microswitch For Window Lowering

Information

Observe installation position of the microswitch.

• The lines must be pointing away from the handle when clipping in the microswitch  .

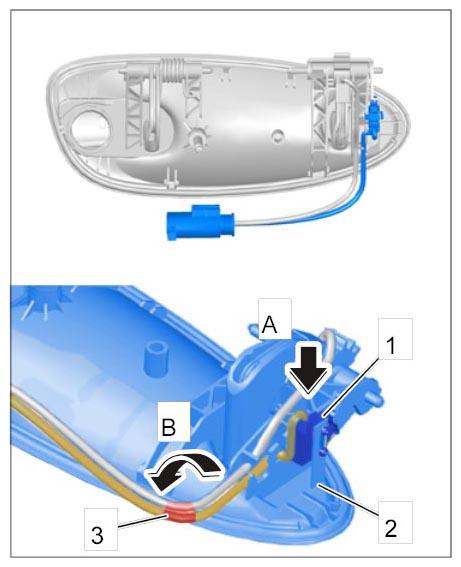

1. Position microswitch -1-  on the door handle -2-  and press it in -Arrow A-  until the microswitch engages visibly.
2. Wrap felt tape -3-  around the wire harness -Arrow B-  . (Only for KESSY)
Fig 1: Installing Microswitch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Lock pins on connector for KESSY/window lowering. (Only for KESSY)

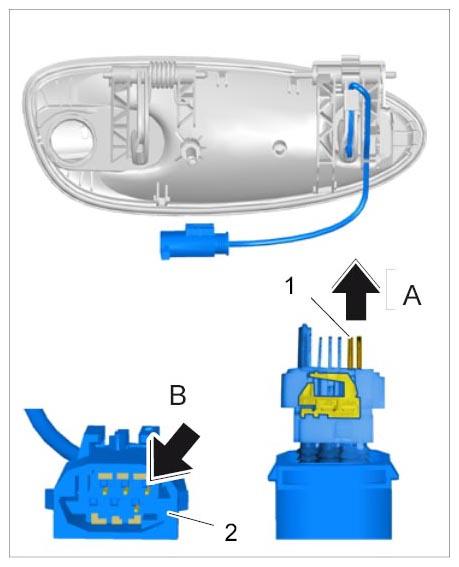

   1. 3.1. Press in pins -1-  on the connector housing -2-  according to the coding you wrote down -Arrow A-  until they engage securely -Arrow B-  .
      Fig 2: Assembling Connector

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

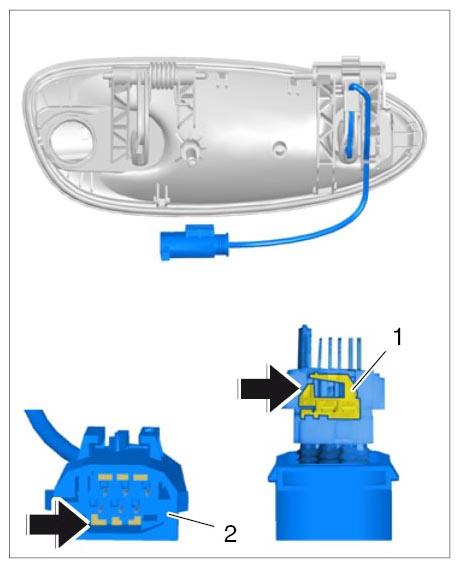

   2. 3.2. Lock locking mechanism -1-  in the connector housing -2-  using the special tool -Arrow-  .
      Fig 3: Assembling Connector

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
