Installing Control Unit For Rear-End Electronics

Information

Always comply with the regulations for handling ESD-sensitive components!

• Assembly work may only be carried out if the mechanic is wearing the working clothes and shoes approved by Porsche  .
• The new part must only be removed from the ESD (electrostatic discharge) protective packaging just before installation and at the position at which the part is to be installed  .
• Never touch the electric pins and plug contacts  .

1. Plug in electric plug connections -3 + 4-  until they engage securely -B-  .

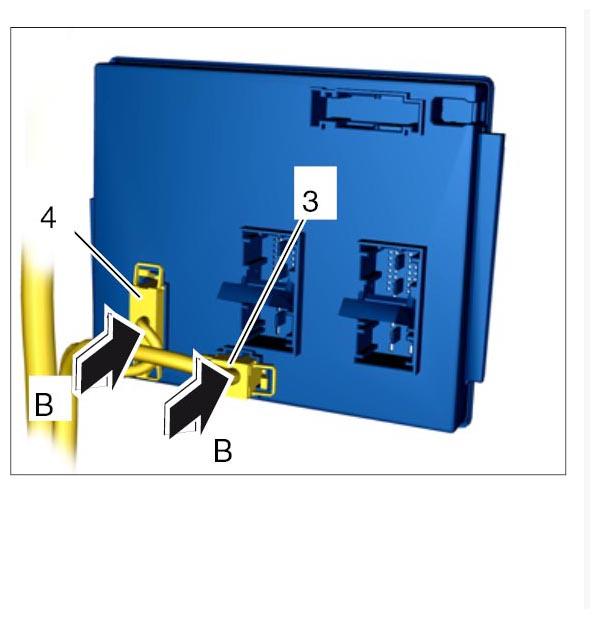

   Fig 1: Installing Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Plug in electric plug connections -1 + 2-  (-B-  ) and lock them -a-  . To do this, slide the clip up until it engages securely.

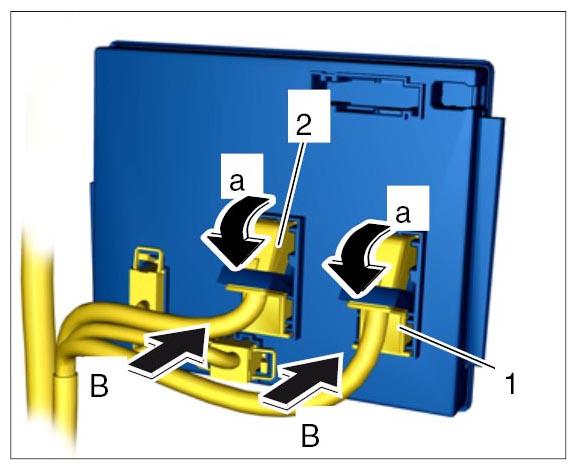

   Fig 2: Installing Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Press control unit -2-  into the foam holder -1-  (-arrow-  ) and align it.

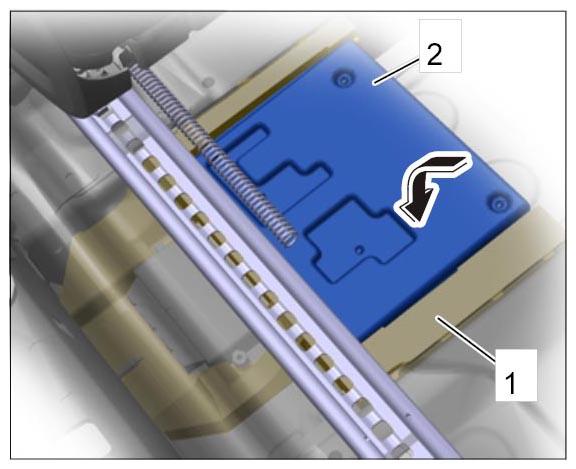

   Fig 3: Installing Control Unit

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Fold carpet down -arrow-  and align it.

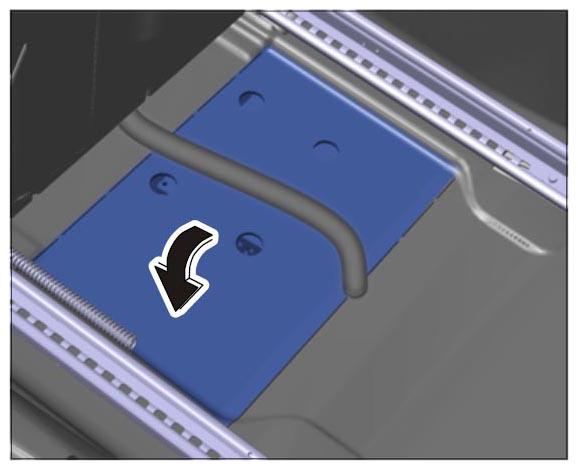

   Fig 4: Folding Carpet

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Move front seat to its initial position.
