Installing Ignition Module For Lid: Notes

Information

If the lid hinge is triggered, the lever was actuated and the hook is not engaged on the lever, the engine compartment lid must be pressed down and the hook must be engaged on the lever.

• Lid hinge triggered, i.e. ignition module was triggered: The lever was pressed and the hook is not engaged on the lever.
• Lid hinge not triggered: The hook is engaged on the lever.

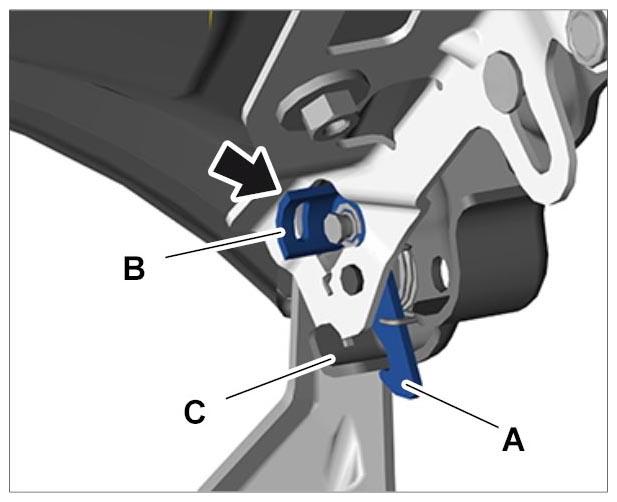

  Fig 1: Locating Lid Hinge Position (Not Triggered)

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Engage ignition module for lid at the lid hinge.

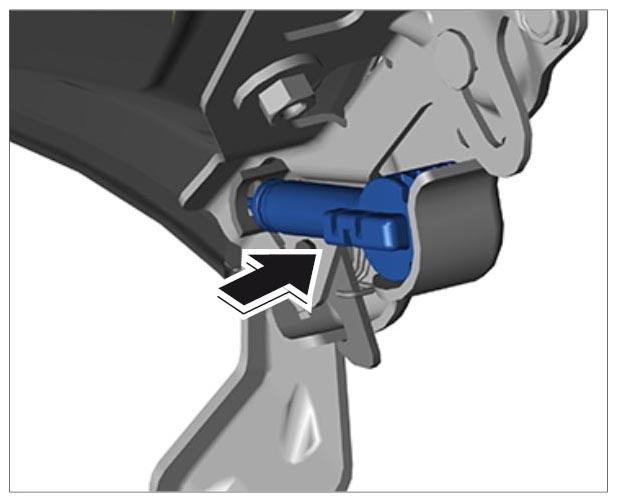

   Fig 2: Connecting Ignition Module In Lid Hinge

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Connect electric plug connection until the connector engages securely.
