Removing DME Control Unit: Notes

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

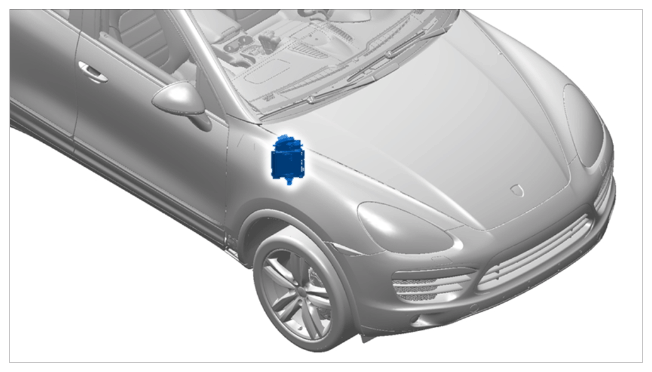

Installation position of DME control unit

Information

Always comply with the regulations for handling ESD-sensitive components!

• Always wear approved work clothes and shoes when carrying out assembly work.
• Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation.
• Do not touch electric pins and plug contacts.

1. Switch off ignition and remove remote control (hand-held transmitter) and control unit.

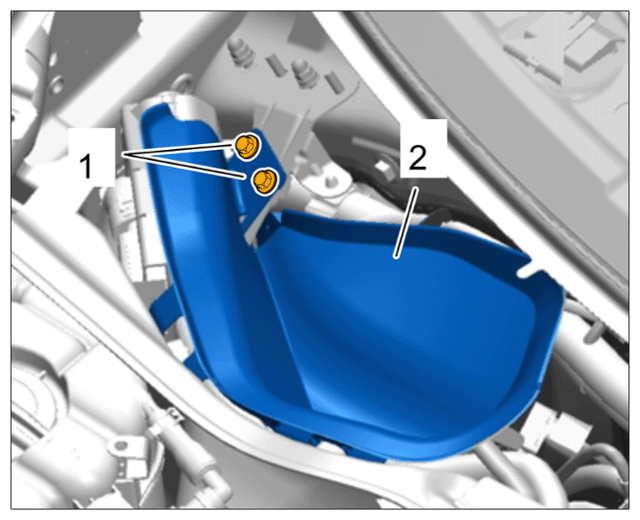

2. Unscrew fastening screws -1-  and remove water drip pan -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing DME control unit bracket

   NOTIFICATION

   Voltage peaks

   • Risk of damage to electrical load or to the control unit

   Information

   Left-hand drive vehicles are fitted with a protection cap over the connector. This must be folded upwards before releasing and disconnecting the connector.

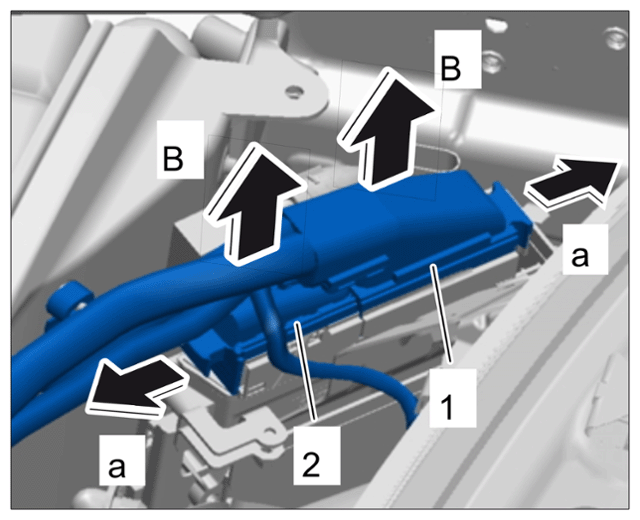

3. Release electric plug connection -1-  (-a-  ) and disconnect it -B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Plug connections on DME control unit

4. Release electric plug connection -2-  (-a-  ) and disconnect it -B-  .
5. Remove DME control unit with bracket by pulling it upwards.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position of DME control unit

Information

Always comply with the regulations for handling ESD-sensitive components!

• Always wear approved work clothes and shoes when carrying out assembly work.
• Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation.
• Do not touch electric pins and plug contacts.

1. Switch off ignition and remove remote control (hand-held transmitter) and control panel.
2. Unscrew both fastening screws -1-  on the control unit bracket and remove water drip pan -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing DME control unit bracket

   NOTIFICATION

   Voltage peaks

   • Risk of damage to electrical load or to the control unit

   Information

   Left-hand drive vehicles are fitted with a protection cap over the connector. This must be folded upwards before releasing and disconnecting the connector.

3. Release electric plug connection -1-  (-a-  ) and pull it off -B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Plug connections on DME control unit

4. Release electric plug connection -2-  (-a-  ) and pull it off -B-  .
5. Remove DME control unit with bracket by pulling it upwards.
