Removing Triggering Unit For Airbag

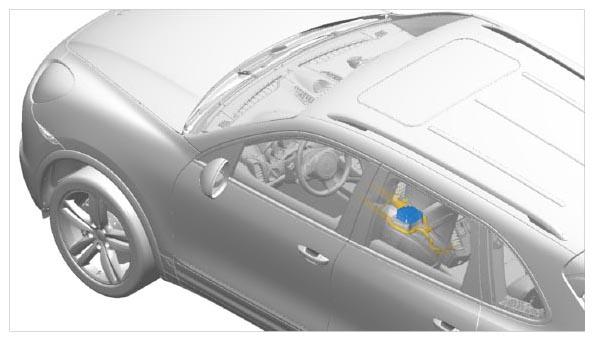

Fig 1: Identifying Airbag Triggering Unit Installation Position
G09940515Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Wait 1 minute after disconnecting the battery.
  2. Disconnect electric plug connection.
    1. 2.1. Release electric plug connection -arrow-  .
    2. 2.2. Release the locking clip -a-  .
    3. 2.3. Open the locking clip -b-  and remove the plug connection.

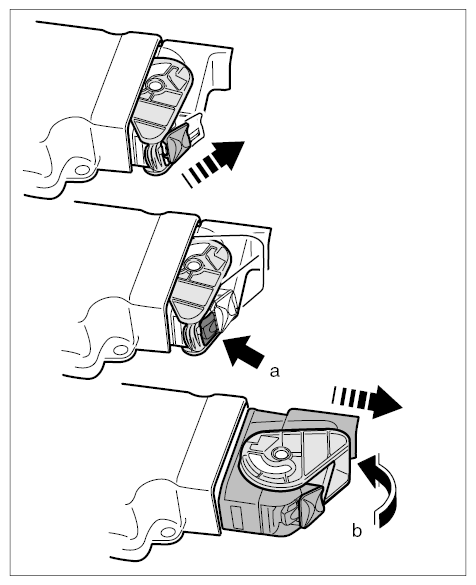

      Fig 2: Disconnecting Plug Connection
      G09940516Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Screw off the three fastening nuts -1-  on the airbag triggering unit and remove the airbag triggering unit.

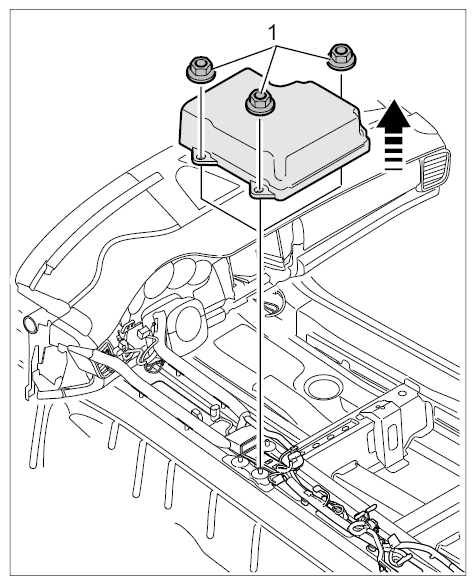

    Fig 3: Removing Triggering Unit
    G09940517Courtesy of PORSCHE CARS NORTH AMERICA, INC.
