Right Fuel Level Sensor

Install a new fuel level sensor. Press the sensor into its mounting. The retaining spring must lock with an audible click.

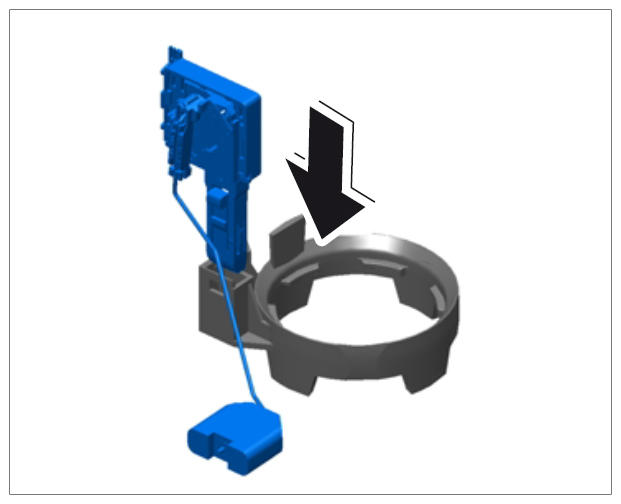

Fig 1: Locating Right Fuel Level Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install fuel pump. → Installing Fuel Pump - section on "Installing"
Fit a new seal in the opening of the tank at the left and right. → Seal

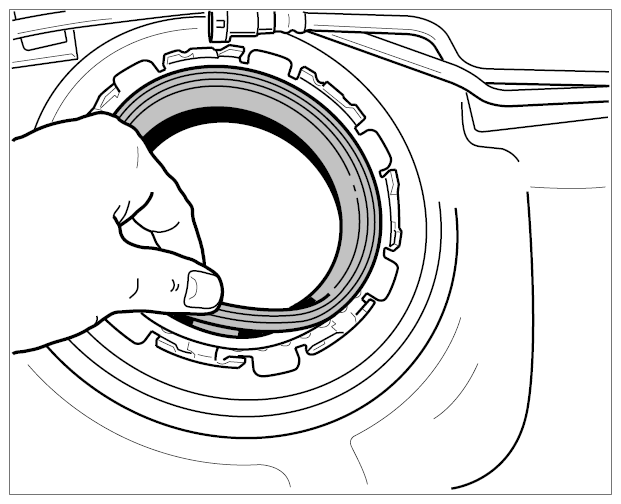

Fig 2: Installing Seal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull the fuel line on the pressure regulator through the fuel tank to the left connection unit using the attached piece of wire or similar item.
Clip in the fuel line -3- on the left connection unit.

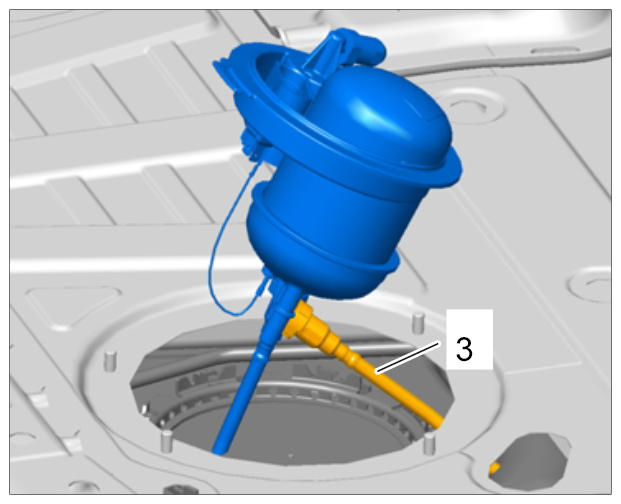

Fig 3: Identifying Fuel Line On Left Connection Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect all connections on the underside of the right connection unit.
Fit the right connection unit with the pressure regulator in the tank. When doing so, make sure that the plastic lugs are pointing forward.
Left fuel level sensor
Install a new fuel level sensor. Press the sensor into its mounting. The retaining spring must lock with an audible click.

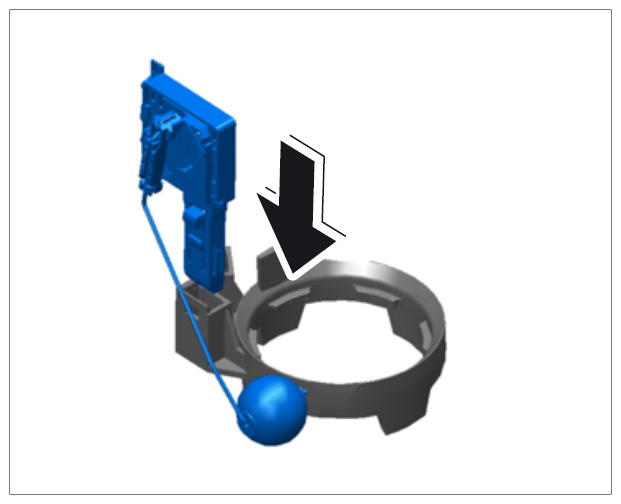

Fig 4: Locating Left Fuel Level Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit the left connection unit with the fuel filter in the tank. When doing so, make sure that the plastic lugs are pointing forward.
Fit new seals in the openings on the tank. → Seal for opening on tank

Fig 5: Installing Seal For Opening On Tank
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect both lines -2 and 3 - to the left connection unit.

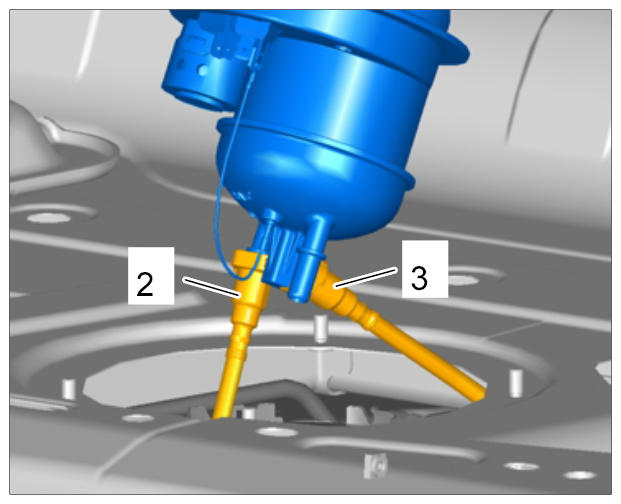

Fig 6: Identifying Fuel Filter Lines
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Plug in electric plug connection -1- until it engages securely.

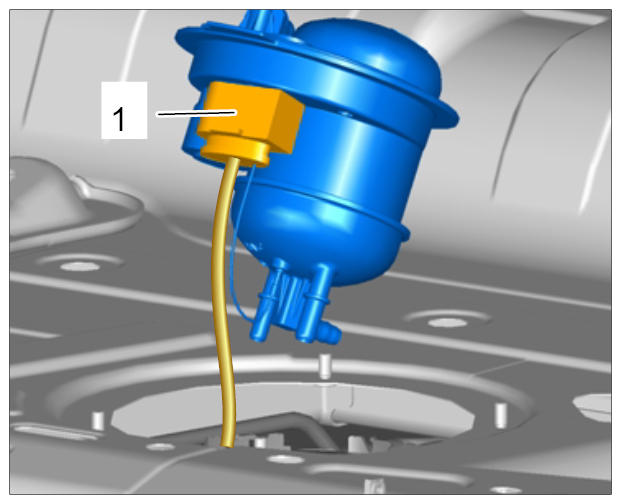

Fig 7: Identifying Fuel Filter Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit the left connection unit with the fuel filter in the tank. When doing so, make sure that the plastic lugs are pointing forward.
