Installing ELV Control Unit

  1. Install ELV control unit.

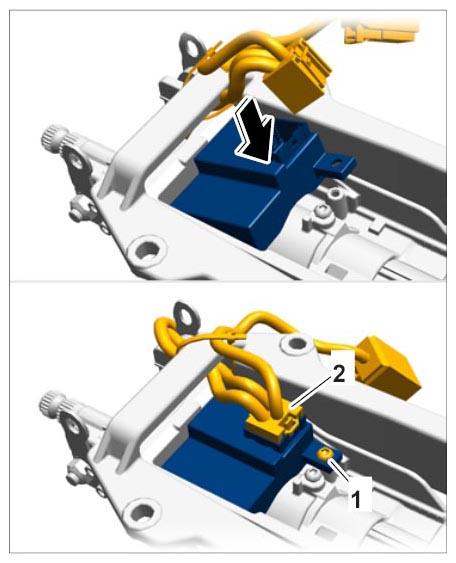

    Fig 1: Installing ELV Control Unit
    G10025593Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 1.1. Place ELV control unit in the steering column -arrow-  .
    2. 1.2. Screw in and tighten fastening screw -1-  . Tightening torque 5 Nm (3.5 ftlb.)
    3. 1.3. Plug in and lock connector -2-  .
