Installing Windscreen-Washer Pump

  1. Apply a suitable rubber lubricant (tyre mounting paste) to the sealing face -arrow A-  and press the rubber seal into the reservoir -arrow B-  until it engages securely.

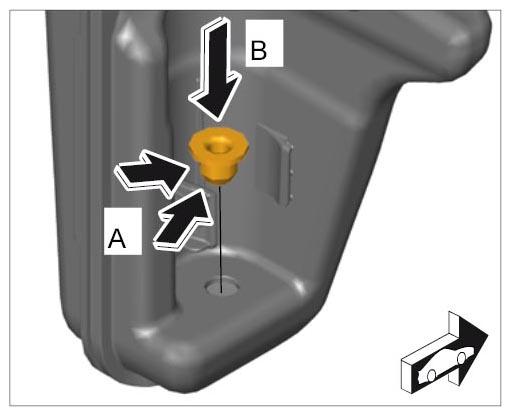

    Fig 1: Fitting Rubber Seal
    G10028453Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Apply a suitable rubber lubricant (tyre mounting paste) to the sealing face -arrow A-  and press the windscreen-washer pump as far as it will go into the rubber seal -arrow B-  .

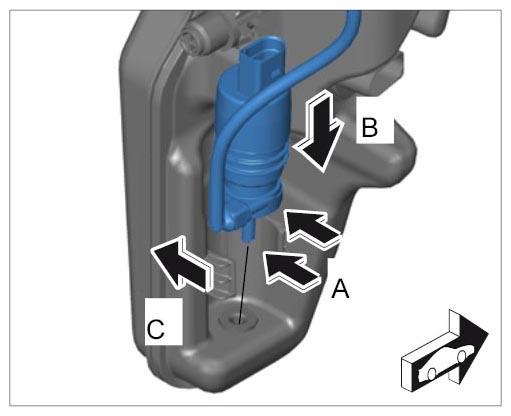

    Fig 2: Installing Windscreen-Washer Pump
    G10028454Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Connect the water line to the adapter on the windscreen-washer pump -arrow C-  .
