Installing Antenna Control Unit

Information

The number of plug connections can vary, depending on equipment.

1. Connect the plug connections -arrows-  (according to color coding) until they engage securely.

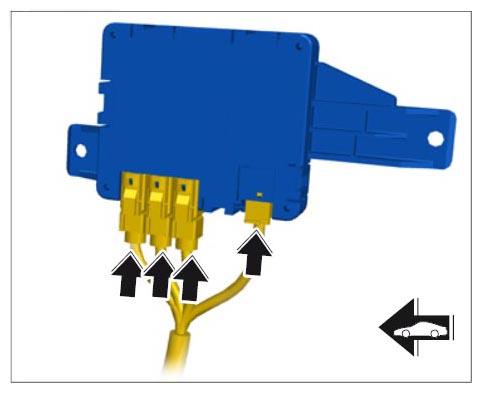

   Fig 1: Connecting Plug Connections

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Position antenna control unit -3-  in the vehicle.
3. Clip electric wire harness -1-  on the antenna control unit -3-  .

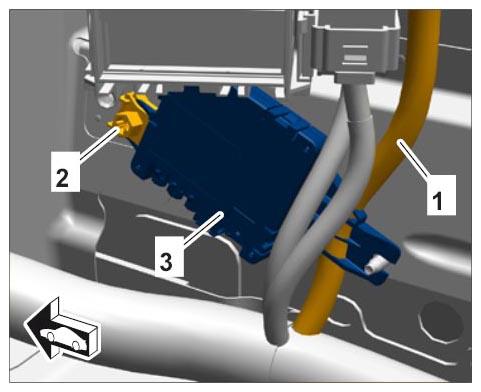

Fig 2: Securing Antenna Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Tighten fastening nut -2-  .
5. Position the cover -3-  on the floor of the vehicle.
6. Tighten fastening nut -2-  .
7. Lay the carpet -1-  .

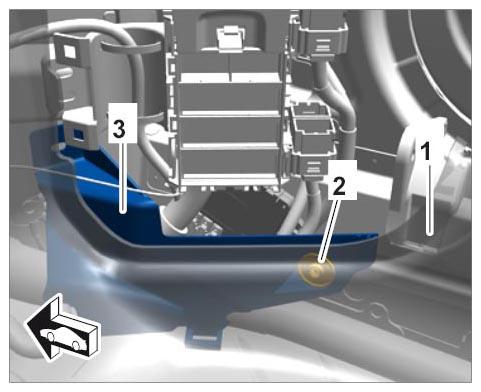

Fig 3: Fastening Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
