Installing Rotation-Rate Sensor

  1. Plug in electric plug connection -1-  on the rotation-rate sensor -2-  (-arrow-  ) until it engages securely.

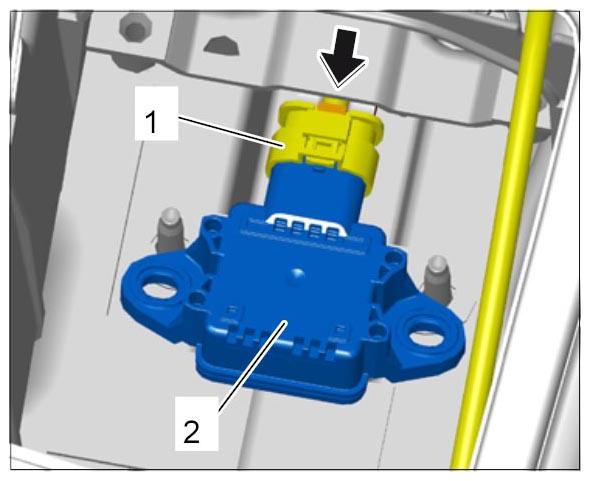

    Fig 1: Installing Electric Plug Connection On Rotation-Rate Sensor
    G10026527Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Position rotation-rate sensor -2-  (-arrow-  ) and center it.
  3. Screw on fastening nuts -1-  .

    Tightening Torque: 10 Nm (7.5 ft. lbs.).

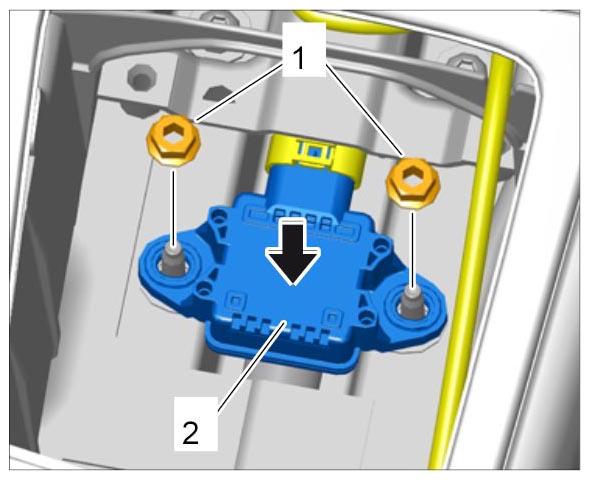

Fig 2: Installing Rotation-Rate Sensor
G10026528Courtesy of PORSCHE CARS NORTH AMERICA, INC.
