Replacing Dme Control Unit With Anti -Theft Protection

Unscrew four fastening screws on the bracket.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Replacing DME control unit (shown as an example)

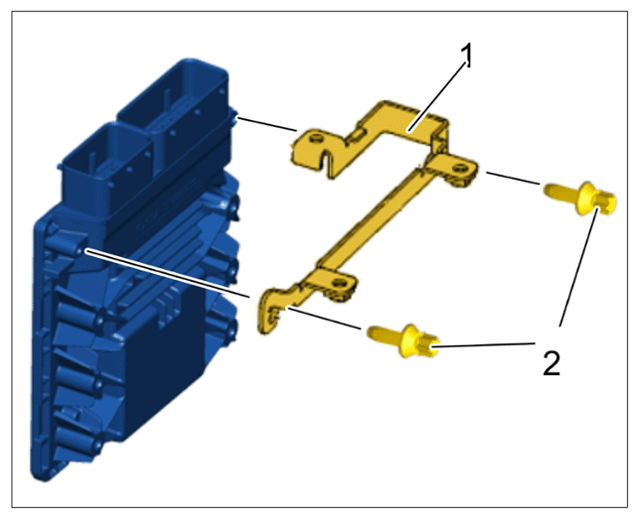

Screw the new anti-theft protection holder -1- to the new DME control unit with two shear bolts -2- until the bolt head shears off.
Do NOT re-use the old anti-theft protection holder as the procedure for removing the two shear bolts would be too complicated.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screwing anti-theft protection holder to DME control unit
Screw in four fastening screws -1- on the bracket. > Tightening torque 9 (6.5 ftlb.) Nm -- dang --

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Replacing DME control unit (shown as an example)
