Installing Triggering Unit For Airbag

  1. Position airbag triggering unit on the center tunnel and secure with the three fastening nuts -1-  . → Tightening Torque: 9 Nm (6.5 ft. lb.) +10 %-15 %

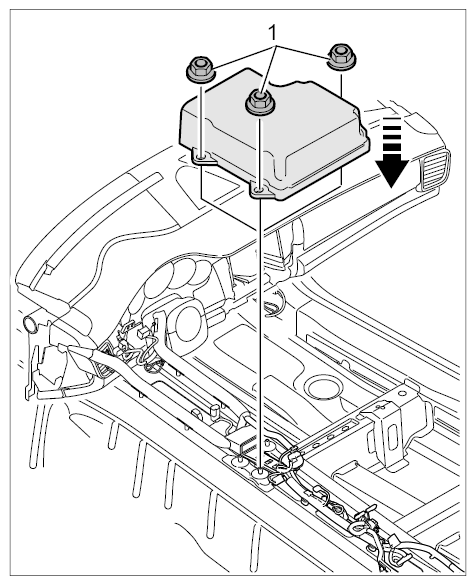

    Fig 1: Installing Triggering Unit
    G09940518Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Connect electric plug connection.
    1. 2.1. Connect electric connector -arrow-  .
    2. 2.2. Lock locking clip on the connector as far as it will go -b-  .
    3. 2.3. Close the lock on the connector -a-  .

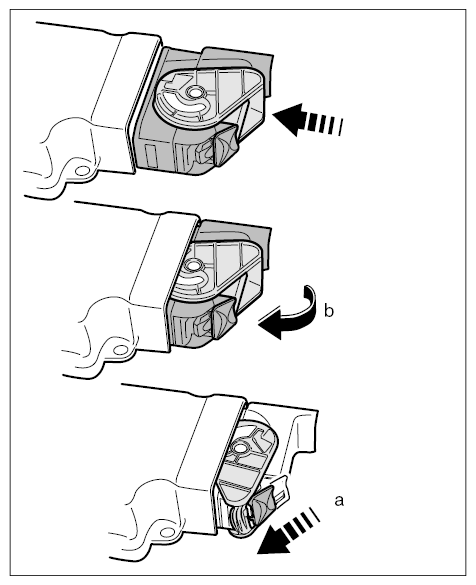

      Fig 2: Connecting Electric Plug
      G09940519Courtesy of PORSCHE CARS NORTH AMERICA, INC.
