Removing Switch For Power Windows

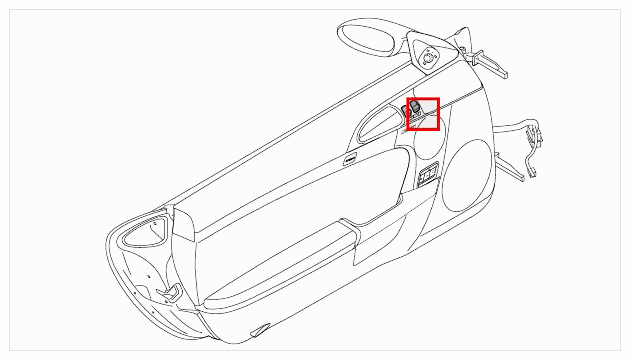

Fig 1: Overview Of Switch For Power Windows
G09590843Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Release -arrow a-  and pull off connector.

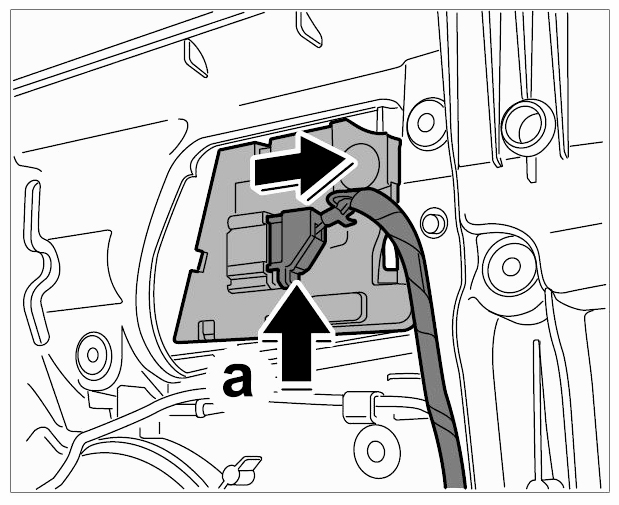

    Fig 2: Pulling Out Connector Off Switch For Power Windows
    G09590844Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Lever off switch for power windows at the locking tab -arrow- (-arrow A-)  and remove it.

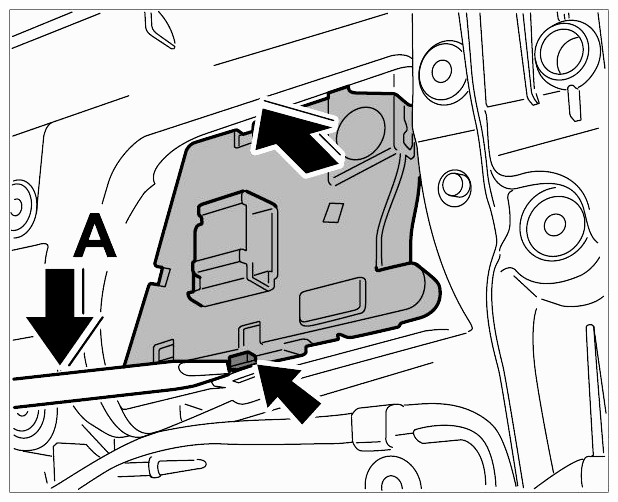

    Fig 3: Removing Switch For Power Windows
    G09590845Courtesy of PORSCHE CARS NORTH AMERICA, INC.
