Installing Switch For Power Windows

Insert the switch for power windows into the mounting points at the door trim panel using the locking tabs.

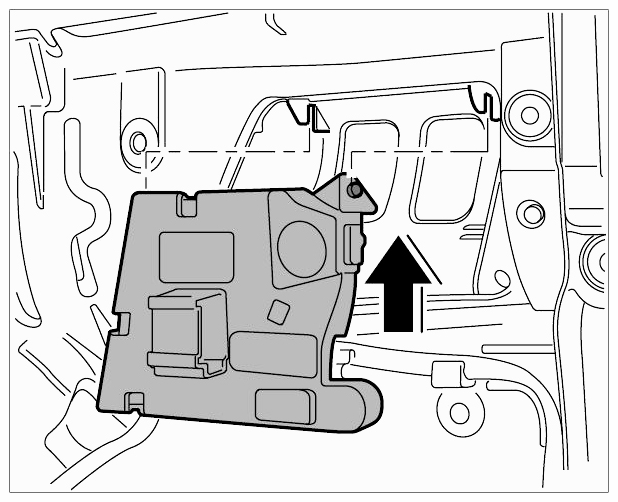

Fig 1: Installing Switch For Power Windows
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press in switch for electric power windows until the locking tab -arrow- clicks into place.

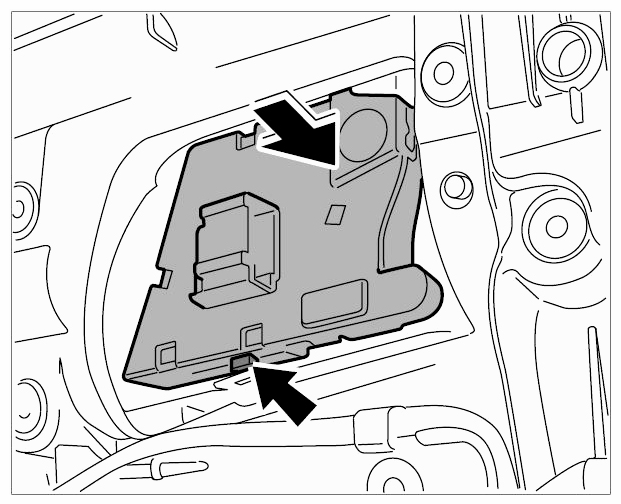

Fig 2: Installing Switch For Power Windows
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press in the connector until it is felt to engage.

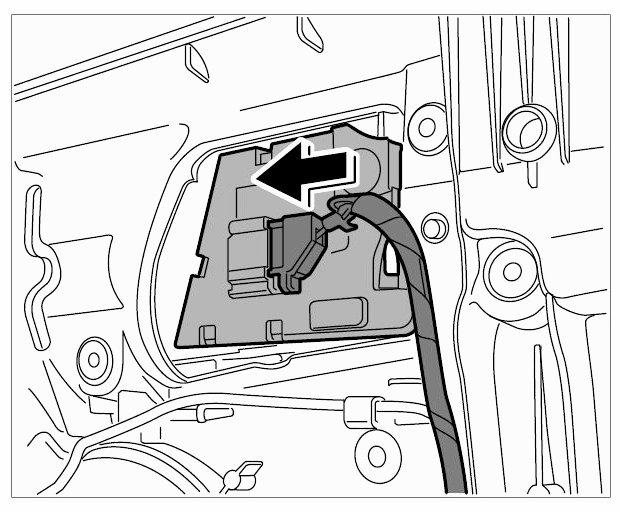

Fig 3: Connecting Connector For Switch Power Windows
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
