Home >> Porsche >> 2012 >> Boxster Base, Standard Trans >> Repair and Diagnosis >> General Information >> Reset Procedures >> Tire Pressure Monitor Systems >> TPMS Reset Procedures >> Tire Pressure Monitor System Reset >> Vehicles WITHOUT Multifunction Steering Wheel

Vehicles WITHOUT Multifunction Steering Wheel

Updating Tire Specification Settings:

NOTE: Starting the TPMS learn mode through the on-board computer (multifunction display) is done using the lower left or right lever on the steering column See Fig 1.
  1. Push operating lever forward in order to switch on the selection field.
  2. Select TIRE PRESSURE (or TPC on older models) with the operating lever. Push operating lever forward. The display changes to the Tire pressure menu.
    NOTE: To add tire type selections options not already listed in the selection field, see appropriate manufacturer service information.
  3. Select TIRE TYPE (or SET on older models) with the operating lever. Push the operating lever forward.
  4. Select desired tire. Push operating lever forward.
  5. A display for confirming the selected type of tire appears.
  6. If PROCESS COMPLETE or NO MONITORING, SYSTEM IS LEARNING is displayed, learning mode will be initiated.
  7. Drive vehicle above 16 mph (25 km/h) until correct tire pressures are displayed.
NOTE: The message PROCESS ABORTED appears if the setting process is interrupted. All entries made up to this point are lost, and the original settings remain in effect.

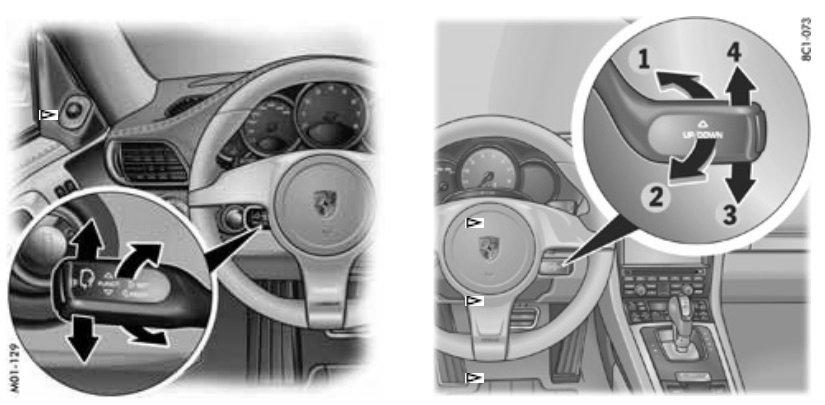

Fig 1: Identifying On-Board Computer Operating Lever
G00530771Courtesy of PORSCHE OF NORTH AMERICA, INC.
