Installing Control Unit For Memory Seat Adjustment

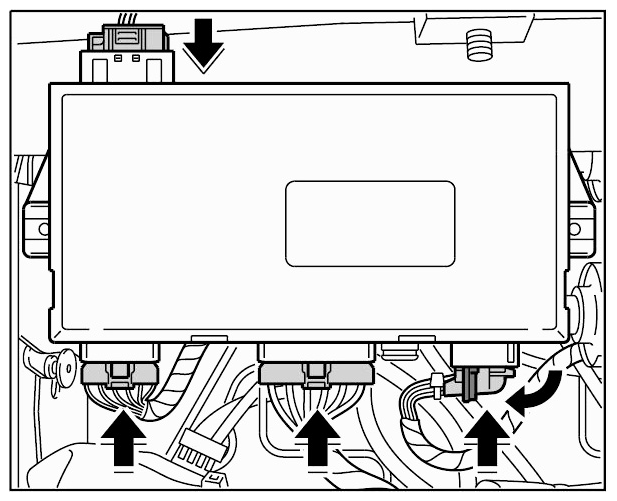

Insert electric connectors into control unit until they are felt to engage.

Fig 1: Inserting Electric Connectors Into Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

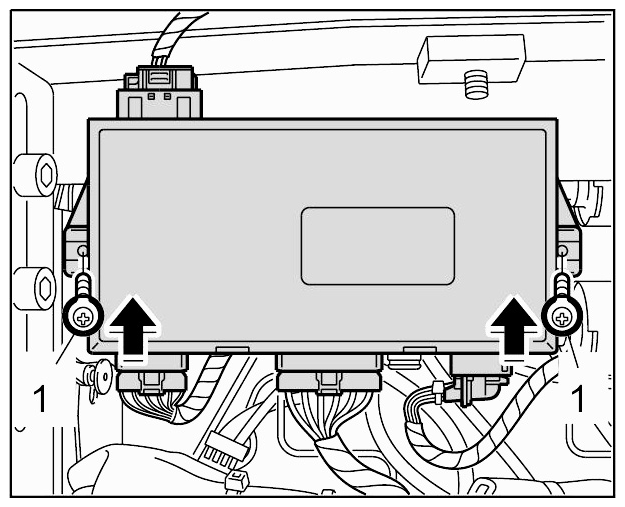

Position control unit on the holder and screw it down using the two fastening screws -1- .

Fig 2: Installing Control Unit To Seat
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
