Installing Control Part Trim Panel (Mechanical)

  1. Connect electrical plug connection 10  .

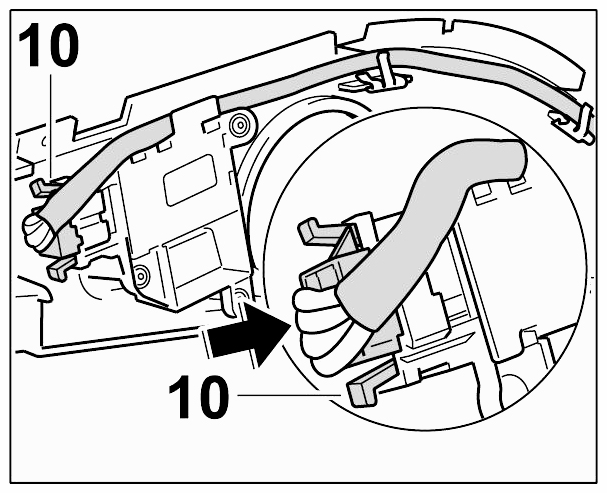

    Fig 1: Connecting Electrical Plug Connection
    G09592141Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Procedure: Installing control part trim panel, work step 2, 3,  4
  3. Position lever 9  on seat, screw down fastening screw 8  . → Tightening torque: 4.5 ftlb.

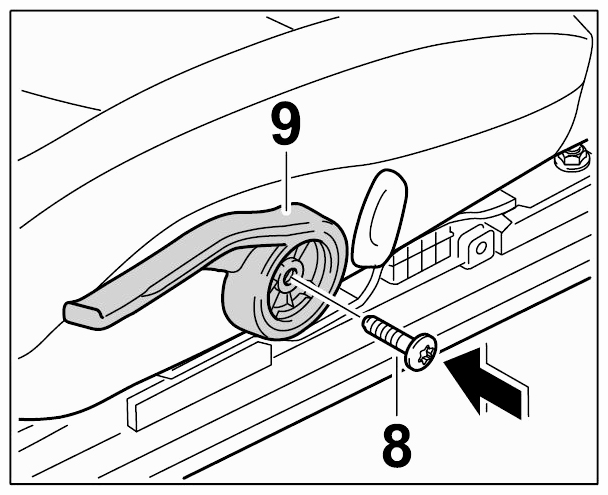

    Fig 2: Tightening Control Part Trim Panel Lever
    G09592142Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Press in trim panel.

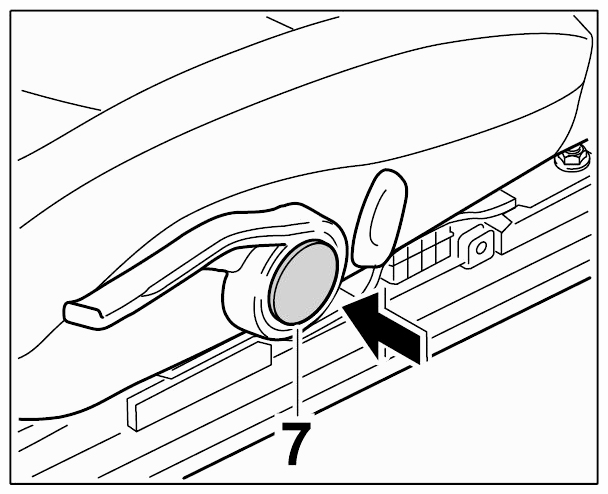

    Fig 3: Pressing Trim Panel
    G09592143Courtesy of PORSCHE CARS NORTH AMERICA, INC.
