Installing Antenna Control Unit

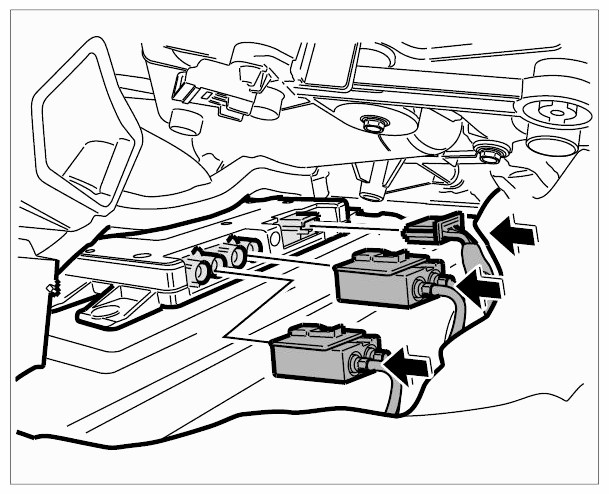

Press electrical connectors onto control module until they are felt to engage.

Fig 1: Connecting Electric Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

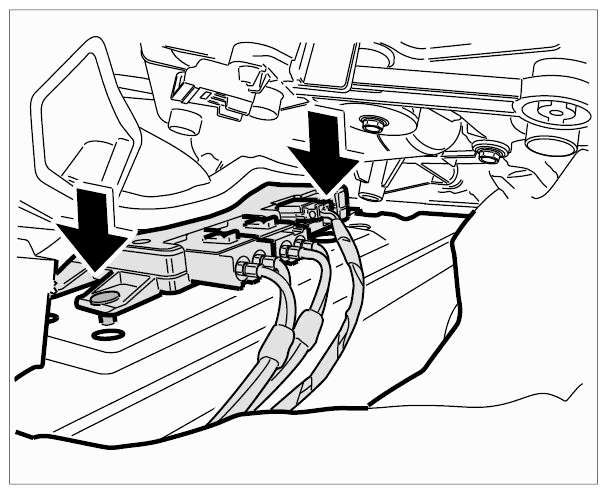

Position control unit on body and secure it with retaining clips.

Fig 2: Installing Control Module
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Draw the carpeting beneath the Centre console together and secure with the velcro fastener.
