Installing Control Module For Parkassist

Information

If the ParkAssist control unit has to be replaced, the values from the control unit should first be read out using the PIWIS Tester 9718.  → 917419 REMOVING AND INSTALLING PARKASSIST CONTROL UNIT

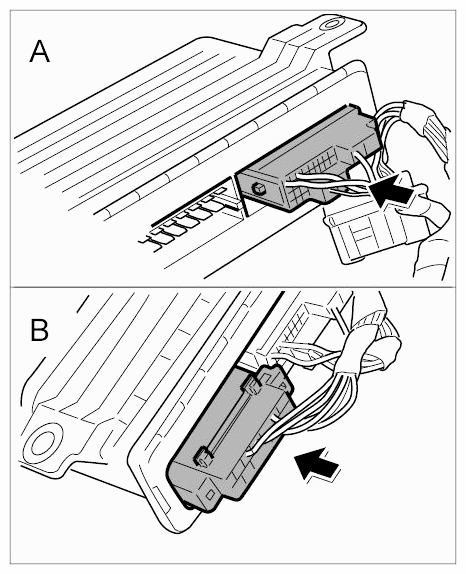

1. Press electrical connectors -A, B-  into control unit until they are felt to engage.
   Fig 1: Pressing Electrical Connectors Into Control Unit

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

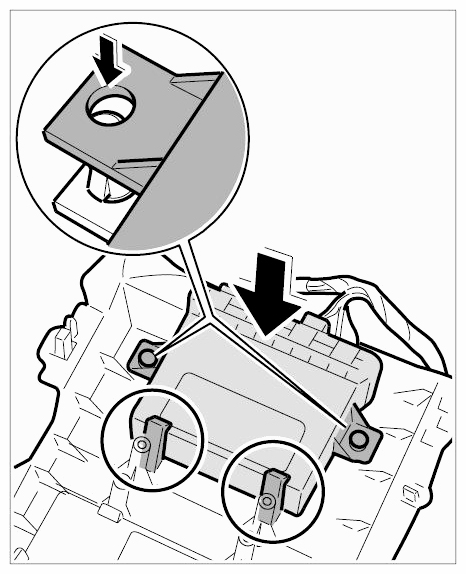

2. Position control unit on its holder, press it in and clip it into the holder.
   Fig 2: Positioning Control Unit On Holder

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Turn the bracket by 180° into the direction of travel, attach it at the front and clip it into place at the rear.

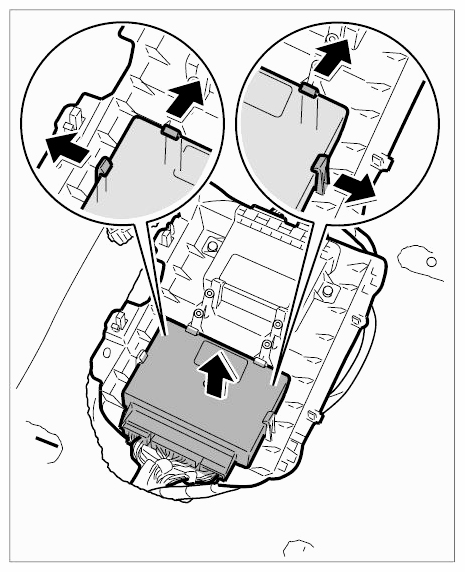

   Fig 3: Removing Control Unit Holder

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
