Removing Control Unit For Rear Convenience Systems

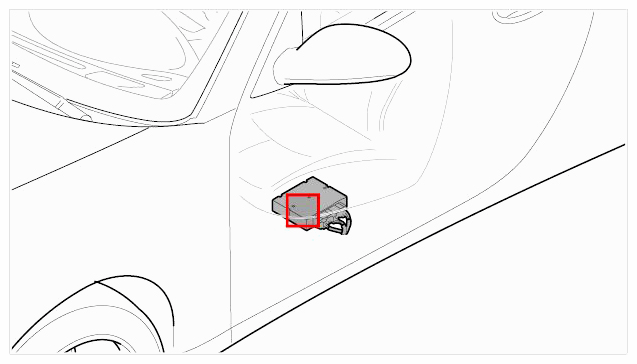

Fig 1: Identifying Control Unit For Rear Convenience Systems Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

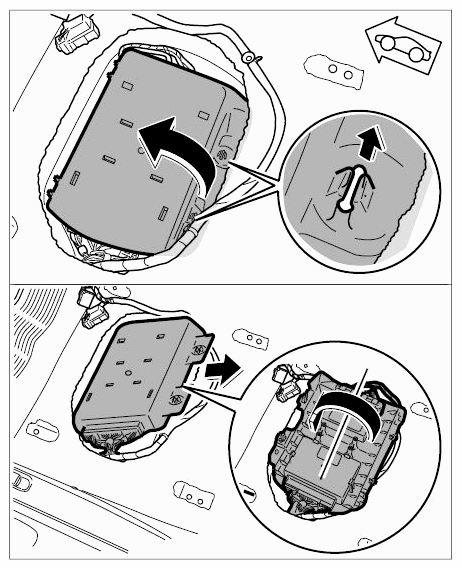

Push holder of control unit forwards in direction of travel from behind, unclip, detach and turn it through 180°.

Fig 2: Pushing Holder Of Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
NOTE:
Voltage peaks
- Risk of damage to load or to the control unit
→ Remove the ignition key and switch off load before disconnecting or removing load.
NOTE:
Voltage peaks
- Risk of damage to load or to the control unit
→ Remove the ignition key and switch off load before disconnecting or removing load.

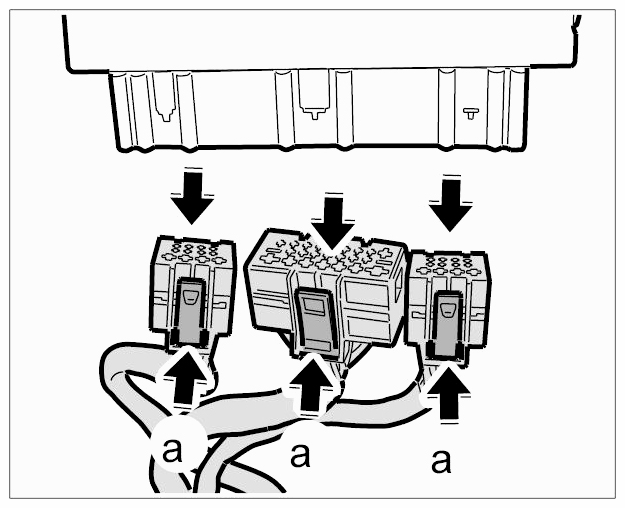

Release the three electrical plugs -a- and pull them away from the control unit.

Fig 3: Pulling Out Electric Connectors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

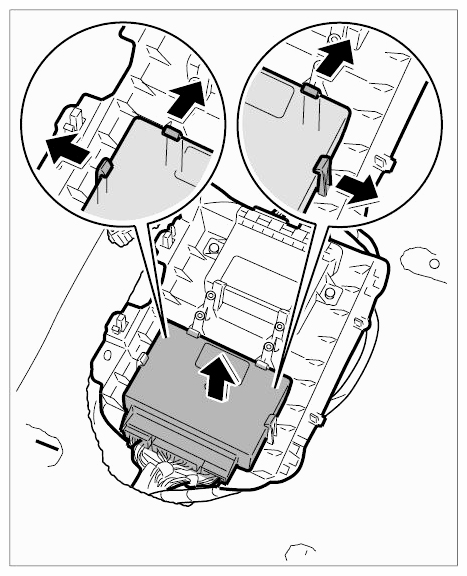

Press the four retaining clips carefully back and take the control unit out of the holder.

Fig 4: Disengaging Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Take out the control unit.
