Installing Control Unit For Rear Convenience Systems

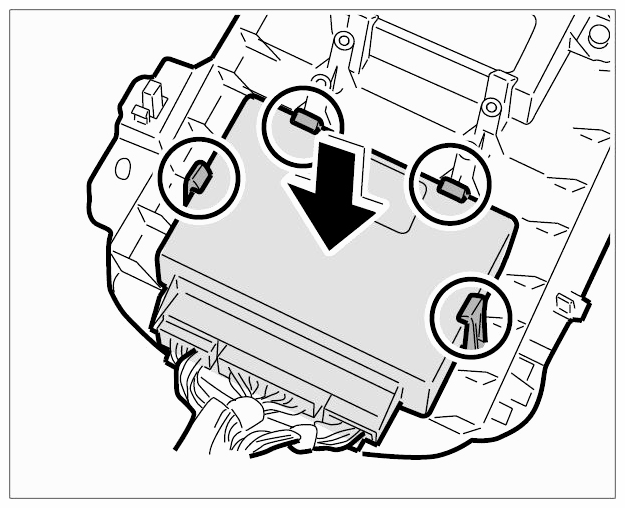

- Insert control unit into holder making sure the clips engage.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

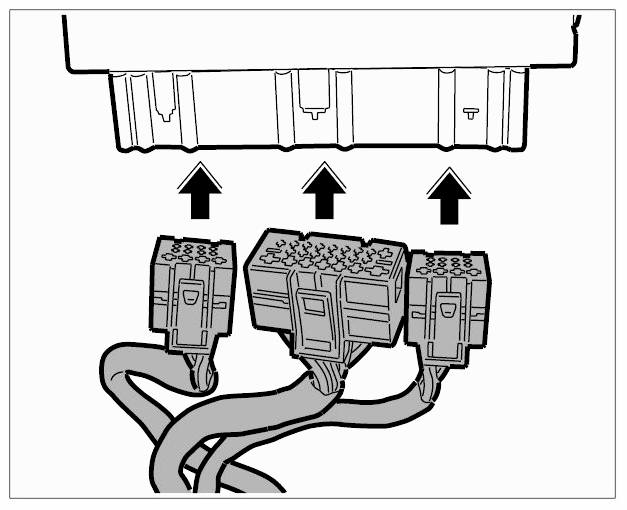

- Press electric connectors into control unit until they are felt to engage.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Turn the holder through 180° into the direction of travel, engage at front and clip in at rear.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- If a new control unit has been installed, continue under → Programming Control Unit For Rear Convenience Systems
→ Coding Control Unit For Rear Convenience Systems
