Disassembling Spring Strut

→ Do not reach into the danger area.

→ Relieve the tension on components before starting work.

→ Secure components to prevent them from loosening suddenly.

1. To prevent damage (deformation), clamp the spring strut in a suitable clamping block (tensioning device for Mac Pherson spring struts). Alternatively, the spring clamp can also be held in a retaining device.
2. Pre-tension the coil spring using spring clamp for spring struts Nr.121  until the piston rod is relieved. The appropriate forks must be inserted into the spring clamp.

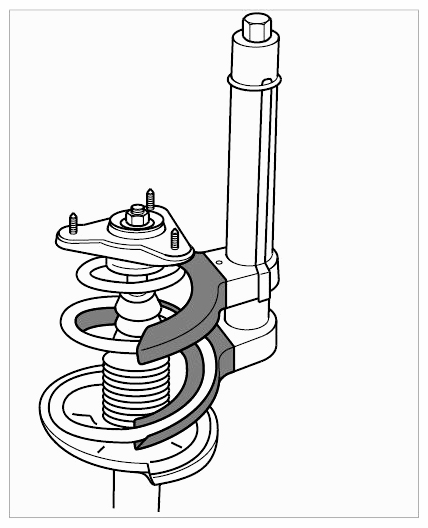

   Fig 1: Identifying Pre-Tension Coil Spring

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Use a socket-wrench insert 9630/2  to loosen the lock nut (securing piston rod to spring strut mount).

   When loosening the nut, counter it at the piston rod (for conventional spring struts) or at the two grooves (cut-outs) of the stop plate (for PASM spring struts). Tools required: retaining tool 9630/1  and for conventional spring struts arm bracket 9630  .

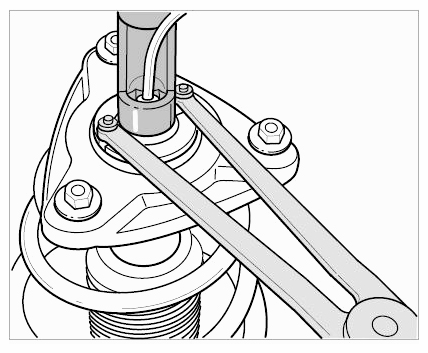

   Fig 2: Identifying Spring Strut Supporting Mounting Nuts (PASM Version)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Remove all parts from the piston rod.
