Installing Microswitch For Window Opening Controls: Notes

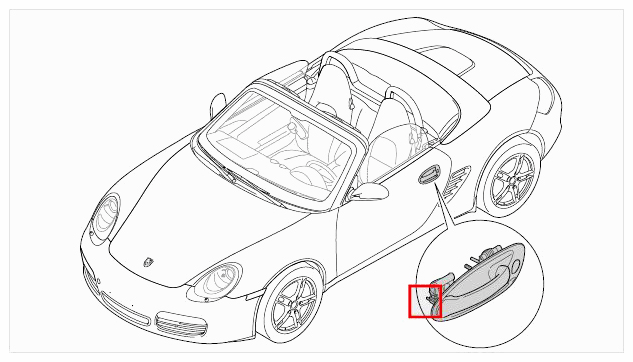

Fig 1: Window Opening Microswitch Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Position microswitch -3-  on the door opener -4-  and press in until it can be felt to engage.
2. Position the lower part of the door opener -2-  under the handle and screw down with fastening nuts -1-  . Tightening torque → Final tightening: 7 ftlb.

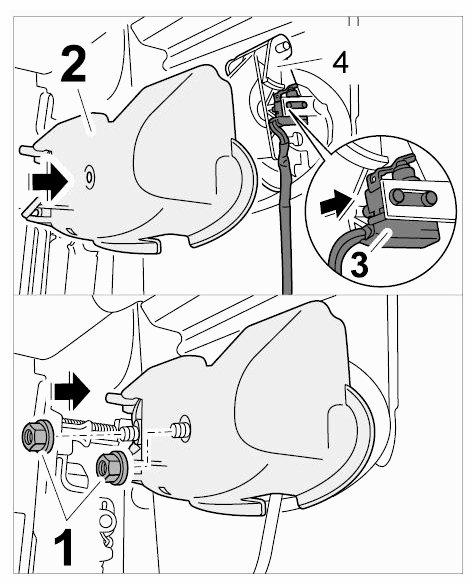

Fig 2: Installing Microswitch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
