Installing Sealing Ring For Front Transfer Box Output

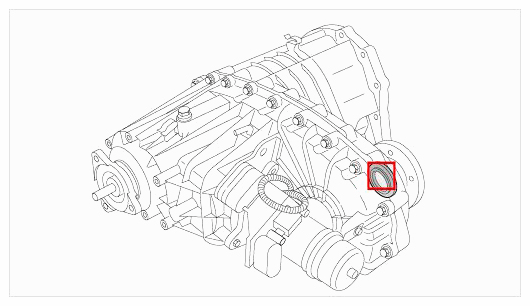

Fig 1: Overview Of Sealing Ring For Front Transfer Box Output

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

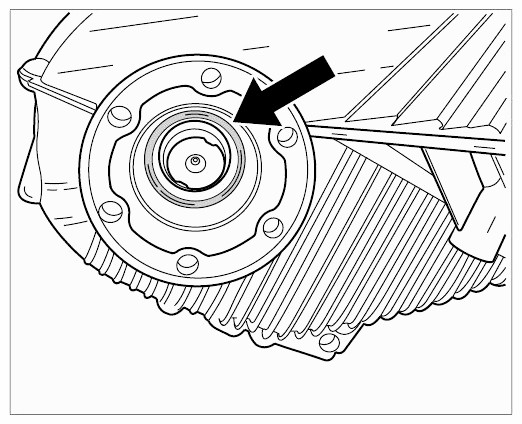

• Ensure that the round seal -arrow- is inserted.
  Fig 2: Locating Output Flange Round Seal

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
• Replace nut on output flange.
• Fit nut using screw-locking compound, e.g. Loctite 648.

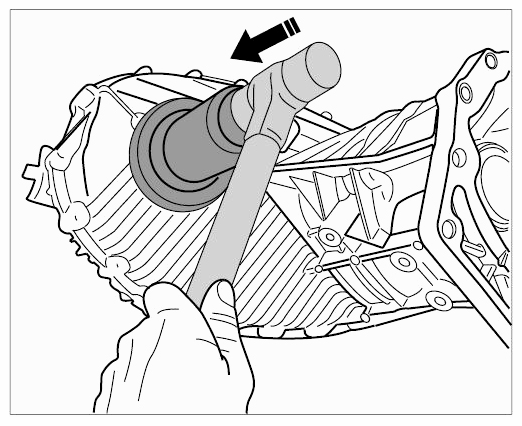

1. Drive in new sealing ring with special tool pressure piece T10185  , until the special tool touches the transmission housing.
   Fig 3: Installing Sealing Ring Using Special Tool Pressure Piece (T10185)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Install output flange and, if necessary, drive in with a plastic hammer.

   Information

   • Ensure that the round seal -arrow- is inserted.
     Fig 4: Locating Output Flange Round Seal

     Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   • Replace nut on output flange.
   • Fit nut using screw-locking compound, e.g. Loctite 648.

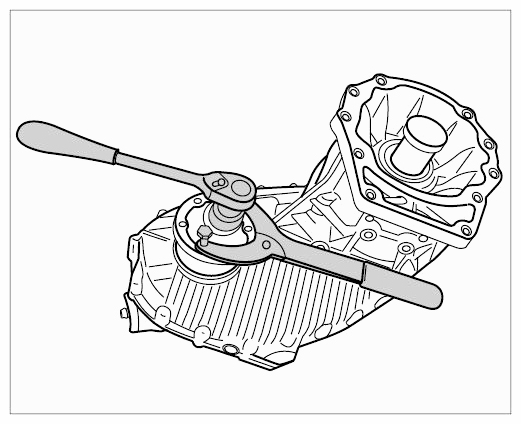

3. Screw in new nut on output flange using special tool socket T10204.  To do this, counter the flange with special tool arm bracket 3435.  → Tightening torque: 135 Nm
   Fig 5: Tightening Output Flange Nut

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

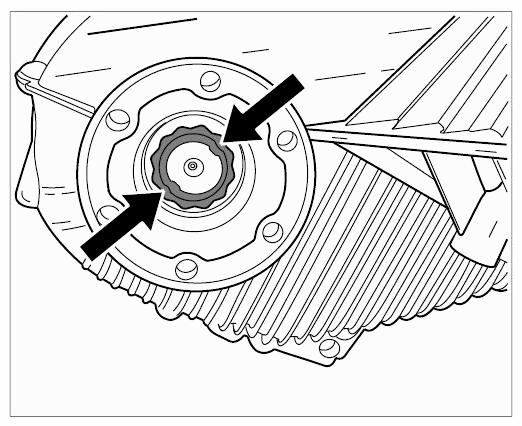

4. Caulk nuts at the recesses in the output shaft.
   Fig 6: Locating Caulking Nuts

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
