Removing Control Unit For Rear-Differential Lock

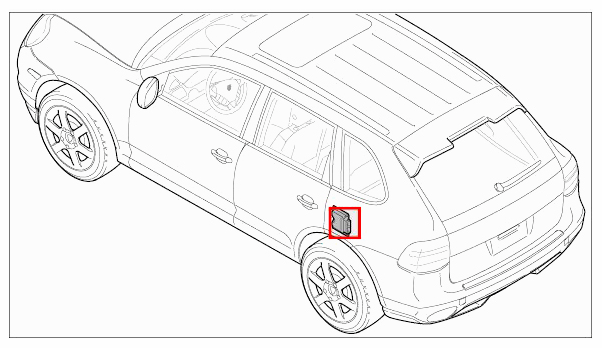

Fig 1: Identifying Installation Position Of Control Unit For Rear-Differential Lock

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Remove the ignition key and switch off load before disconnecting or removing load.

Information

• Only for vehicles without auxiliary air conditioner.

Unscrew fastening screws -1-  and remove package box -2-  (-arrow-  ).

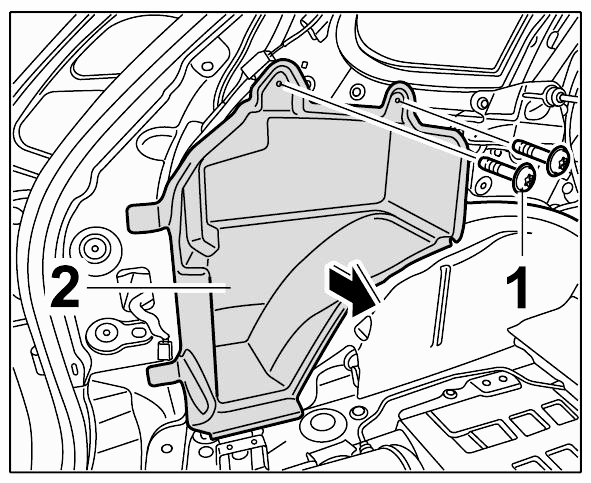

Fig 2: Removing Package Box

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Unscrew fastening screws -1-  and remove control unit for rear-differential lock -2-  from the body -arrow-  .

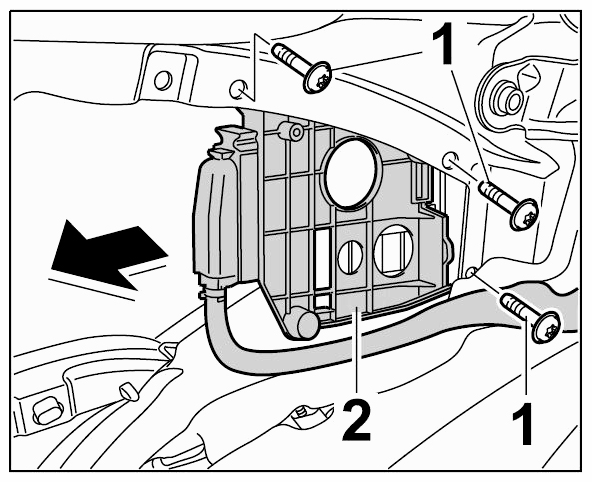

   Fig 3: Removing Control Unit For Rear-Differential Lock

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Release latch -1-  on connector -2-  (-arrow A-) and pull off connector -2-  (-arrow B-).

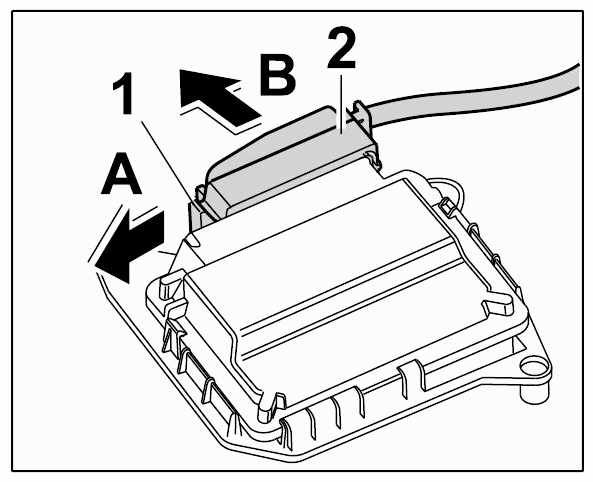

   Fig 4: Removing Connector

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Release holder -1-  at the two clips -arrows A-  , lift up control unit for rear-differential lock -2-  and slide it out -arrow B-  .

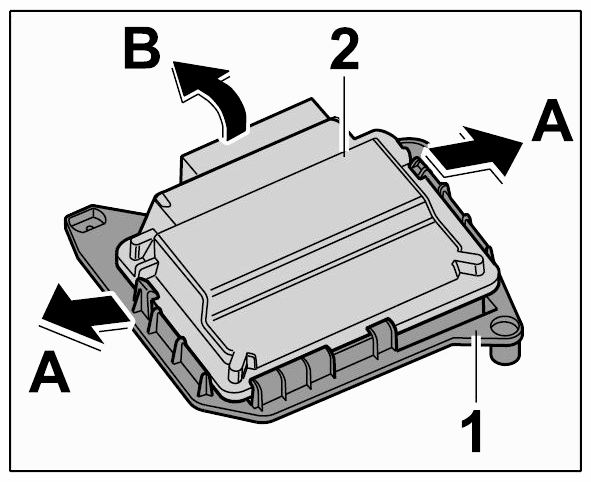

   Fig 5: Removing Control Unit For Rear-Differential Lock

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
